Front Floor Console Compartment Replacement

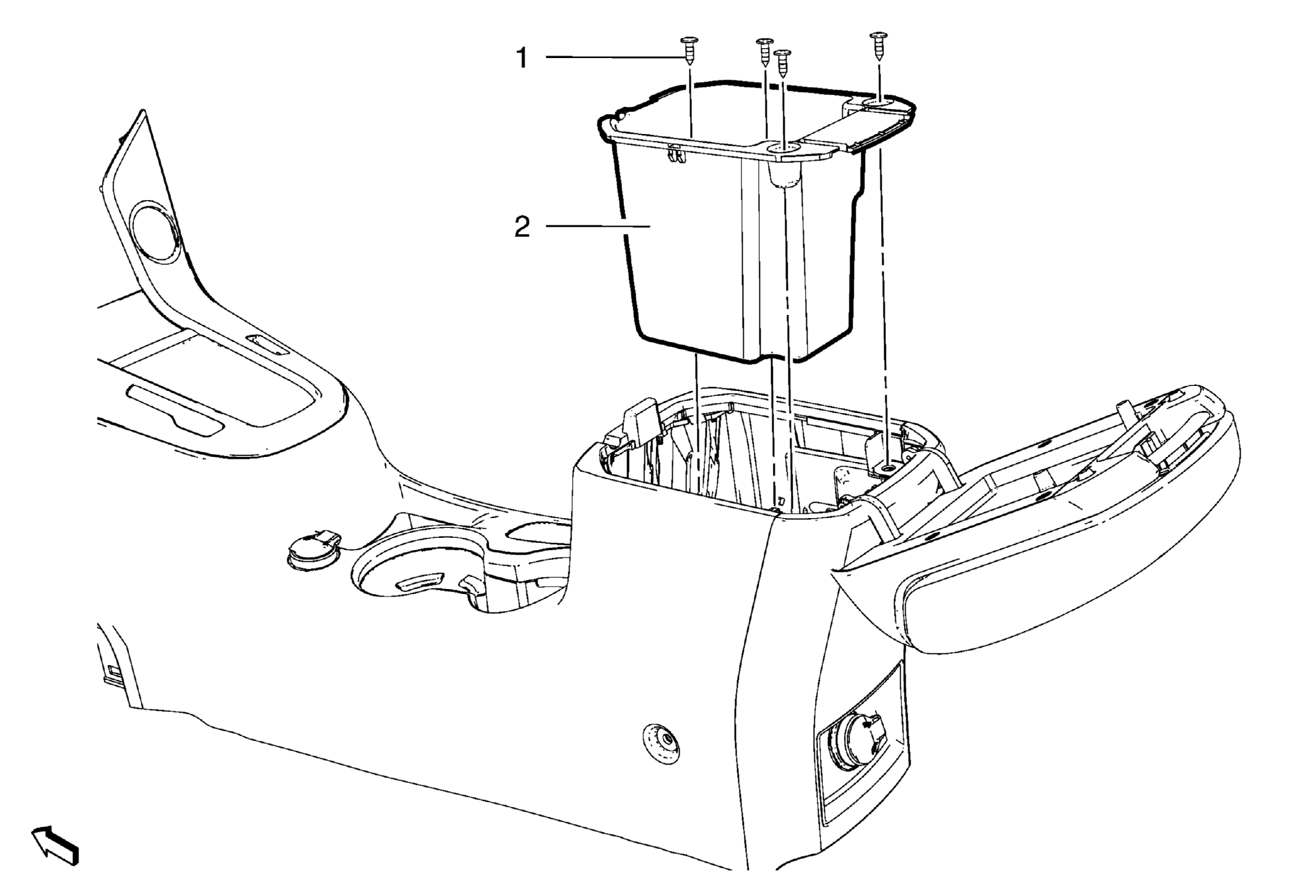

Fig 1: Front Floor Console Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Compartment Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure To gain access to the lower inner fasteners, remove the front floor console compartment liner.
2	Front Floor Console Compartment Procedure Disconnect electrical connectors. If replacing the front floor console compartment, transfer the audio disc player, USB, auxiliary in and memory card receptacle. Refer to Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle Replacement .

Callout

Component Name

Front Floor Console Compartment Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Procedure
To gain access to the lower inner fasteners, remove the front floor console compartment liner.

Front Floor Console Compartment

Procedure

Disconnect electrical connectors.
If replacing the front floor console compartment, transfer the audio disc player, USB, auxiliary in and memory card receptacle. Refer to Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle Replacement .
