Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle Replacement

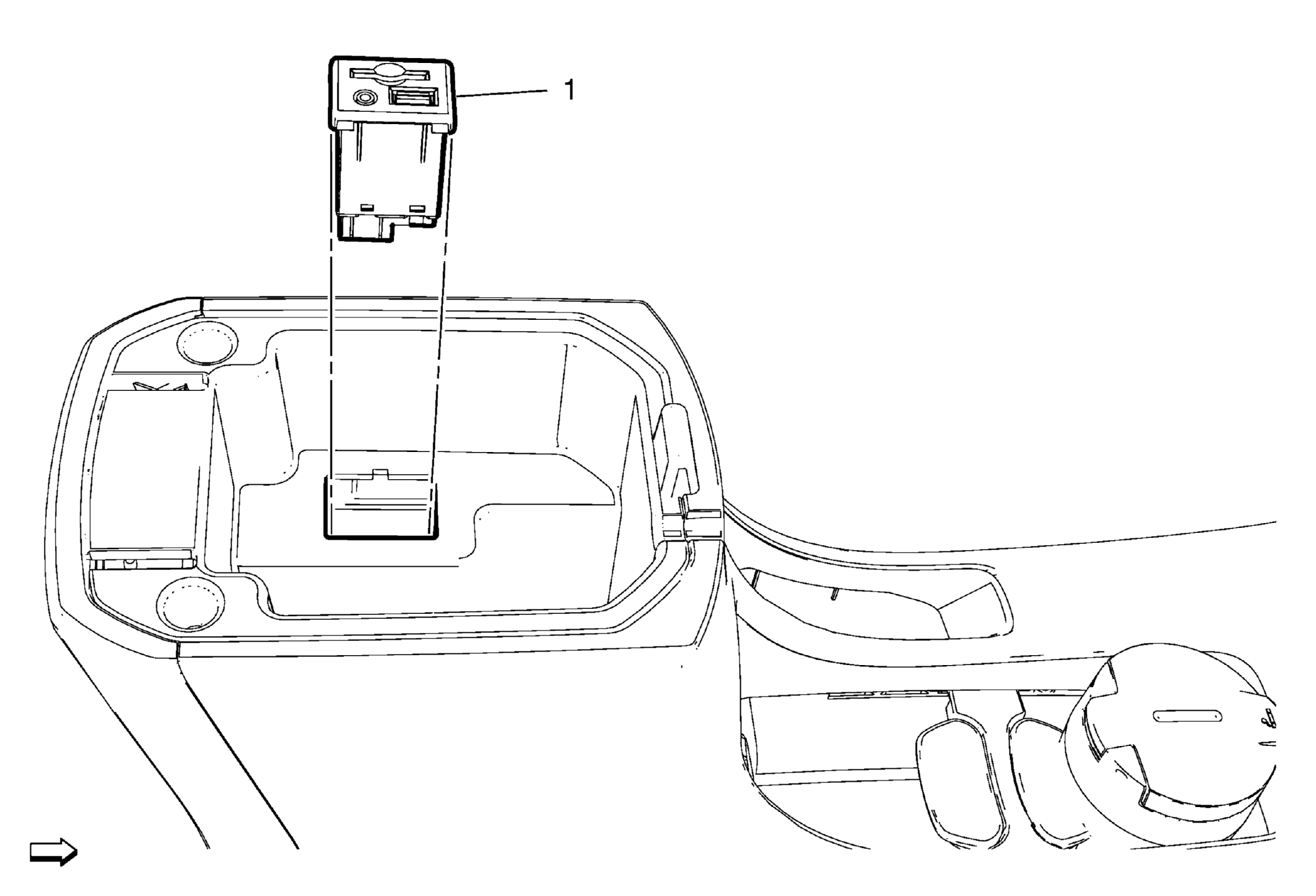

Fig 1: Audio Disc Player, USB, Auxiliary In and Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Audio Disc Player and USB and Auxiliary In and Memory Card Receptacle Procedure Use a suitable screwdriver in order to disengage receptacle from the front floor console. Disconnect electrical components.

Callout

Component Name

Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .

Audio Disc Player and USB and Auxiliary In and Memory Card Receptacle

Procedure

Use a suitable screwdriver in order to disengage receptacle from the front floor console.
Disconnect electrical components.
