Front Floor Console Armrest Replacement

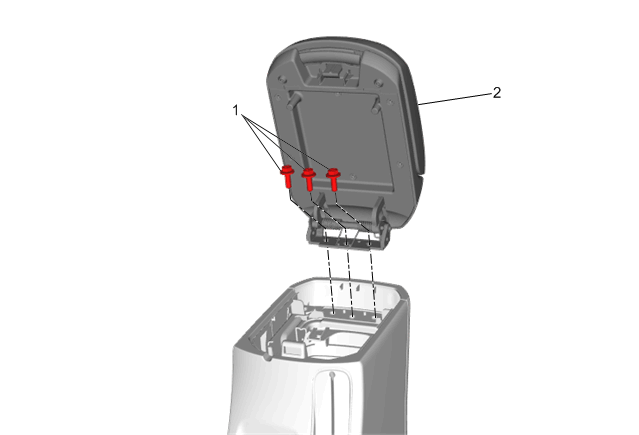

Fig 1: Front Floor Console Armrest

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Front Floor Console Armrest Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Armrest
