Rear End Spoiler Replacement

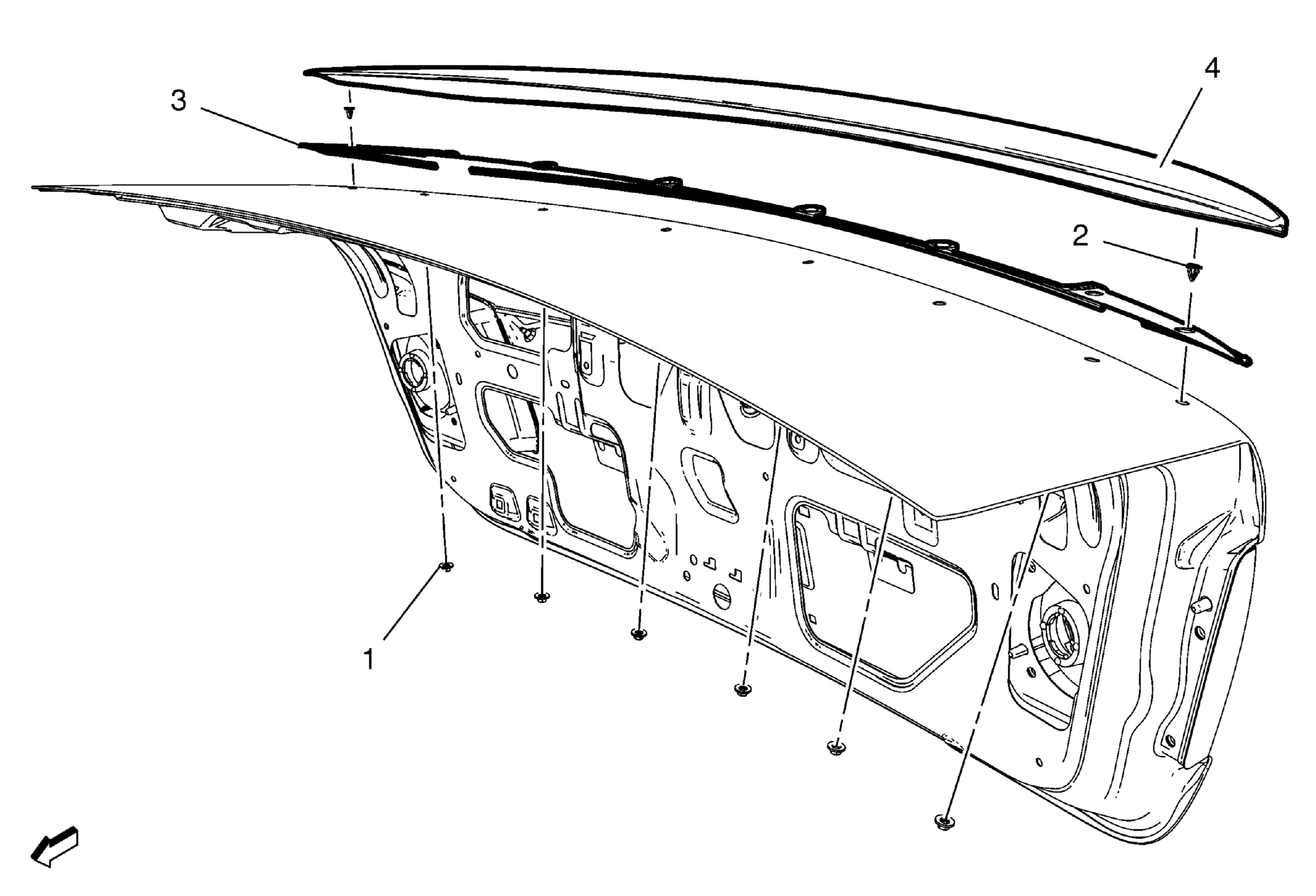

Fig 1: Rear End Spoiler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear End Spoiler Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear End Spoiler Retainer (Qty: 2)
3	Rear End Spoiler Tape
4	Rear End Spoiler
