Front Upper Grille Replacement

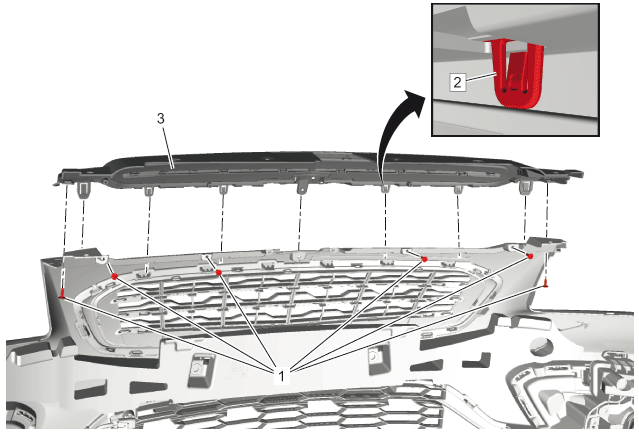

Fig 1: Front Upper Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Radiator Grille Emblem/Nameplate Replacement
1	Front Upper Grille Fastener [6x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Upper Grille Retaining Tabs Procedure Unlock the retaining tabs. Use a flat bladed plastic tool to remove.
3	Front Upper Grille Procedure Transfer components as necessary.
