Radiator Grille Emblem/Nameplate Replacement

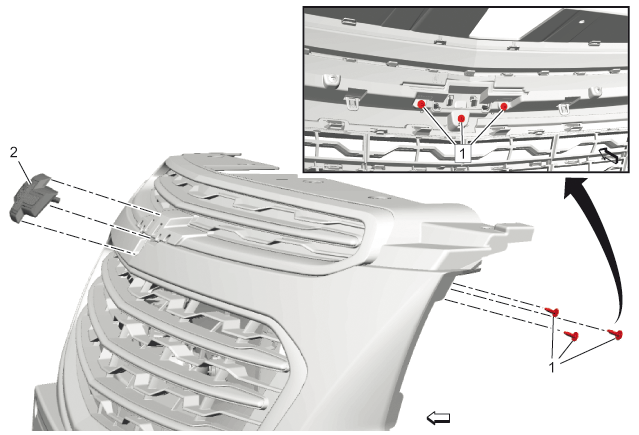

Fig 1: Radiator Grille Emblem/Nameplate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Radiator Grille Emblem/Nameplate Fastener [3x] CAUTION: Refer to Fastener Caution Tighten  2 N.m (18 lb in)
2	Radiator Grille Emblem/Nameplate Procedure  Use a flat bladed plastic tool to remove.
