Rear Side Door Upper Hinge and Lower Hinge Replacement

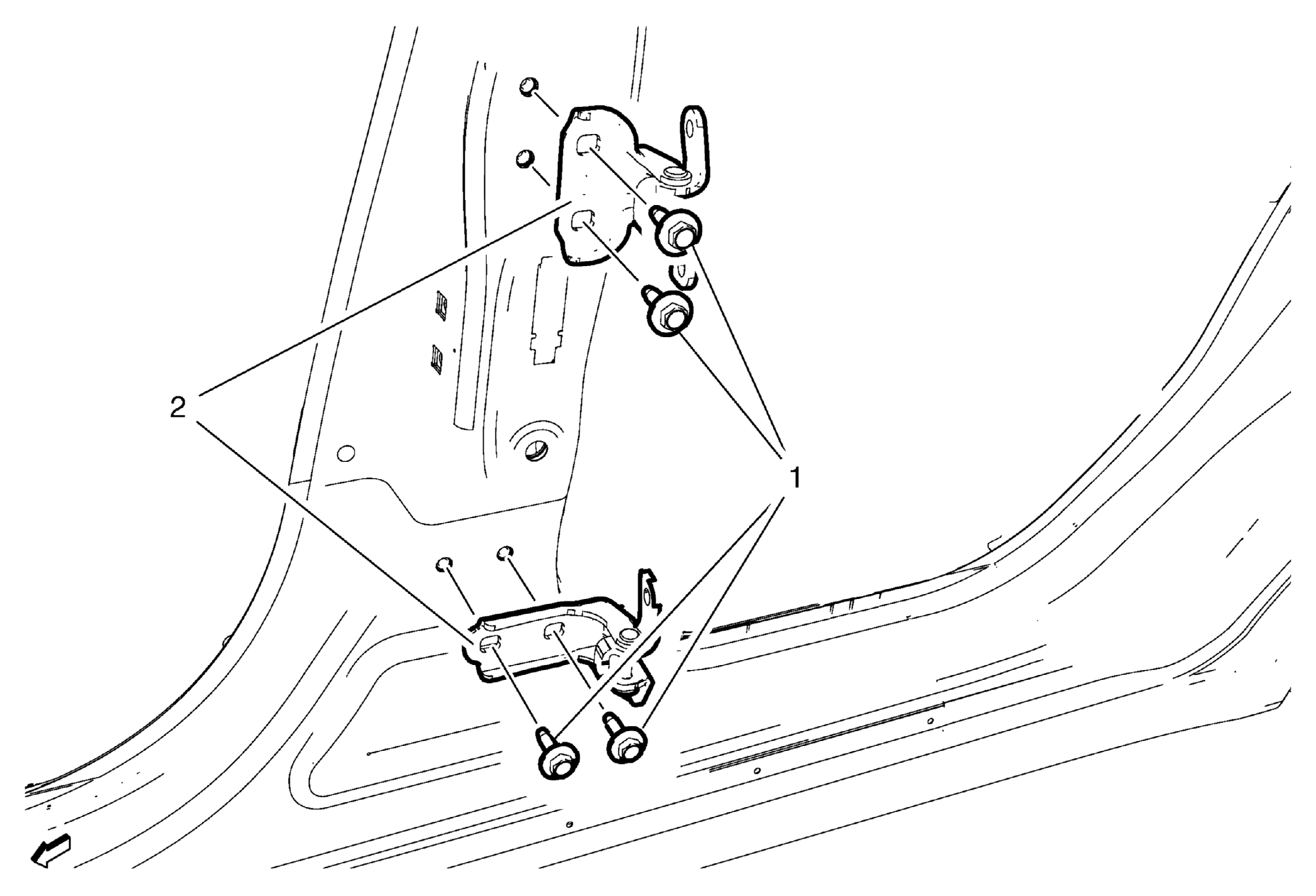

Fig 1: Rear Side Door Upper Hinge and Door Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the rear side door. Refer to Rear Side Door Replacement .
1	Rear Side Door Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  32 N.m (24 lb ft)
2	Rear Side Door Hinge Procedure  Adjust rear side door as needed. Refer to Clearance and Flushness Specifications .
