Rear Side Door Replacement

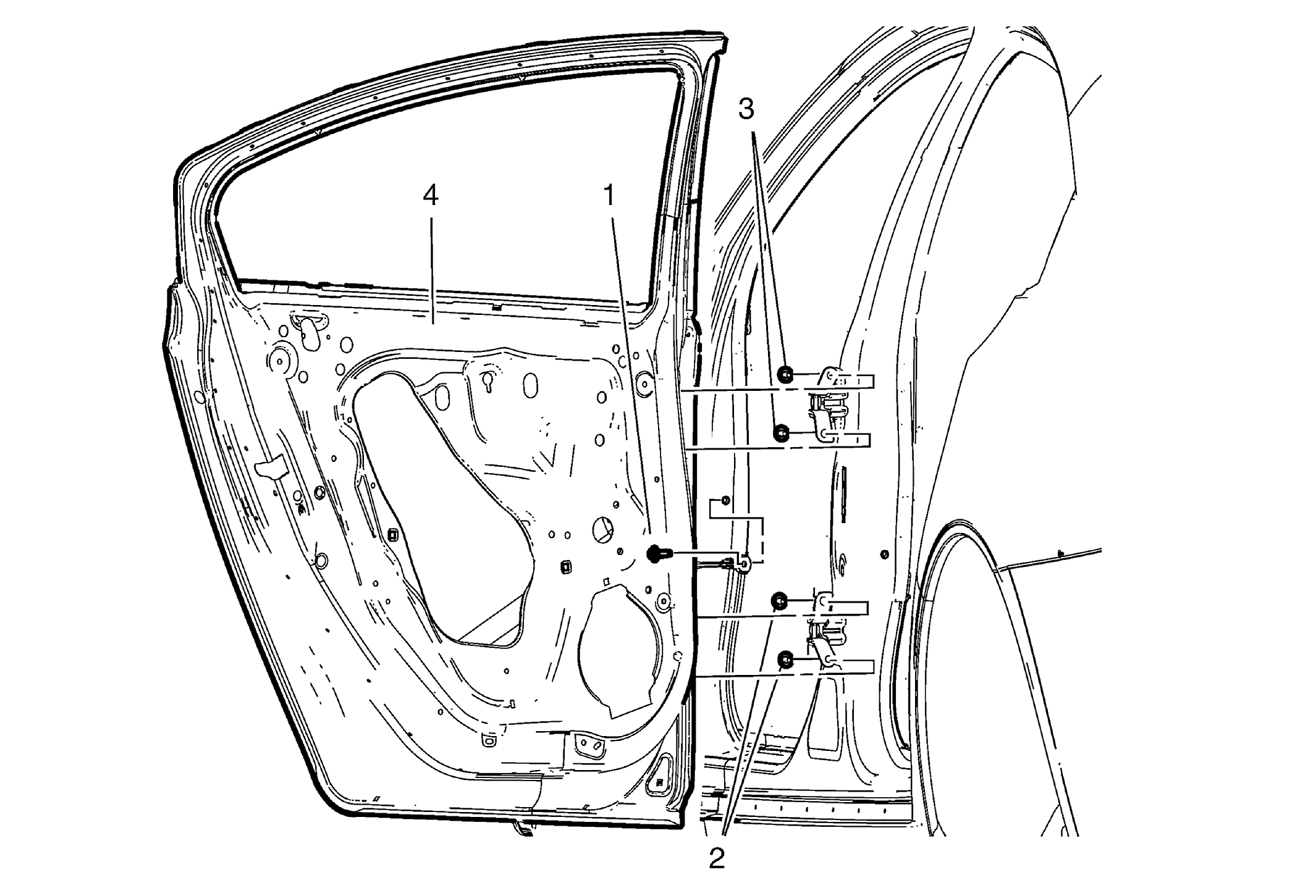

Fig 1: Rear Side Door Mounting Hardware

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the door electrical connector. Support the door before removing the hinge bolts. With the aid of an assistant, remove the door. Tighten 25 N.m (18 lb ft)
2	Rear Side Door Lower Hinge Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
3	Rear Side Door Upper Hinge Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
4	Rear Side Door Procedure Transfer all of the internal components. Adjust the rear side door as needed. Refer to Clearance and Flushness Specifications .
