Rear Side Door Check Replacement

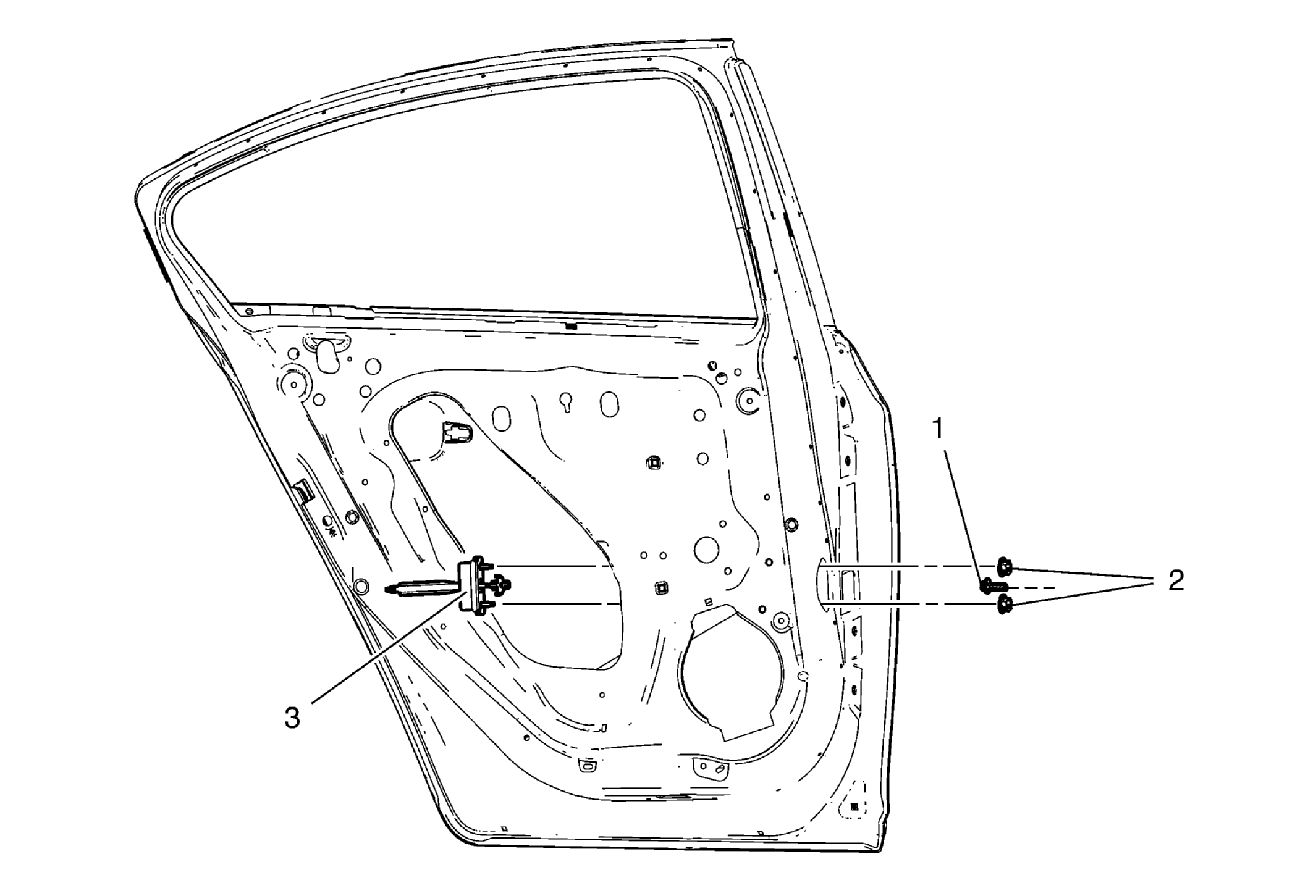

Fig 1: Rear Side Door Check

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove rear side door trim panel. Refer to Rear Side Door Trim Replacement . Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Check Bolt CAUTION: Refer to Fastener Caution Procedure Place the door in the full open position. Tighten 25 N.m (18 lb ft)
2	Rear Side Door Check Nut (Qty: 2) Procedure Remove the water deflector. Tighten 9 N.m (80 lb in)
3	Rear Side Door Check
