Rear Compartment Lid Replacement

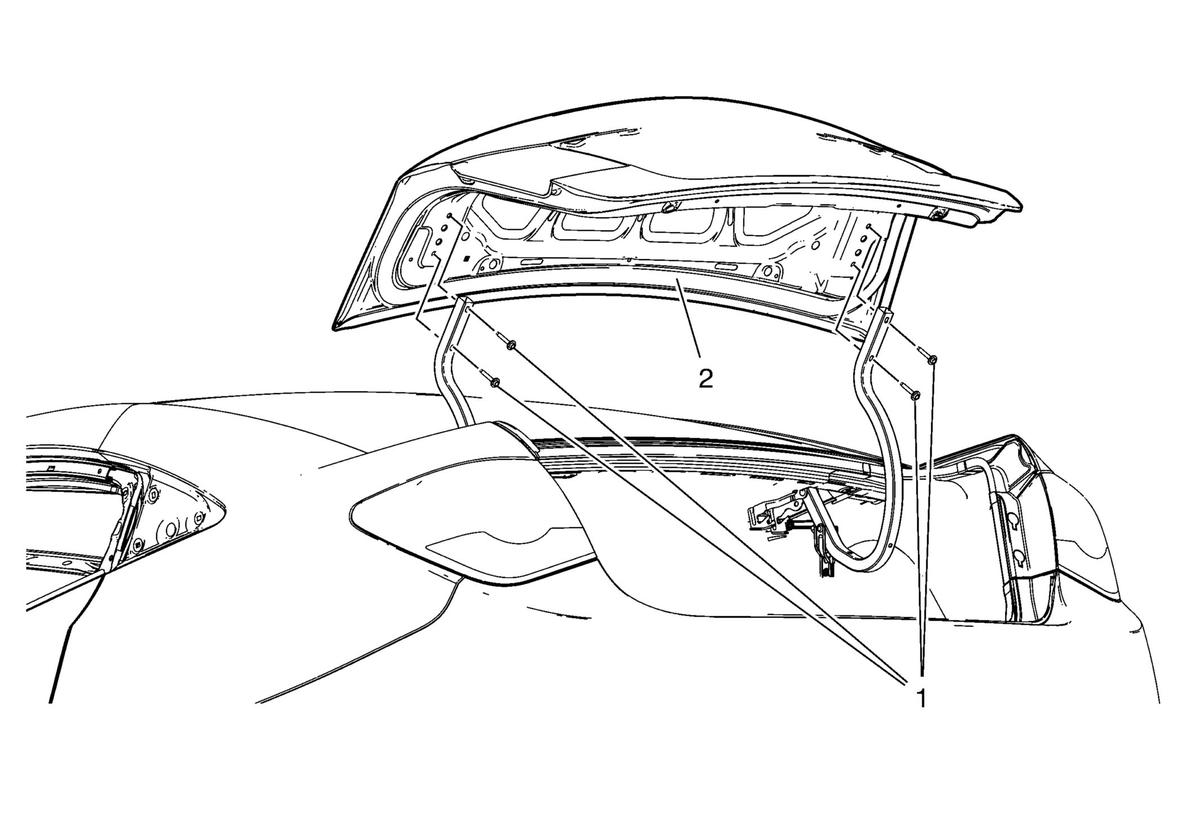

Fig 1: Rear Compartment Lid Hinge Bolts
GM2026961Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Compartment Lid Hinge Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb ft)
2 Rear Compartment Lid

Procedure

  1. Disconnect the electrical connector.
  2. Adjust rear compartment as needed. Refer to Clearance and Flushness Specifications .
  3. Transfer components as necessary.
