Hood Replacement

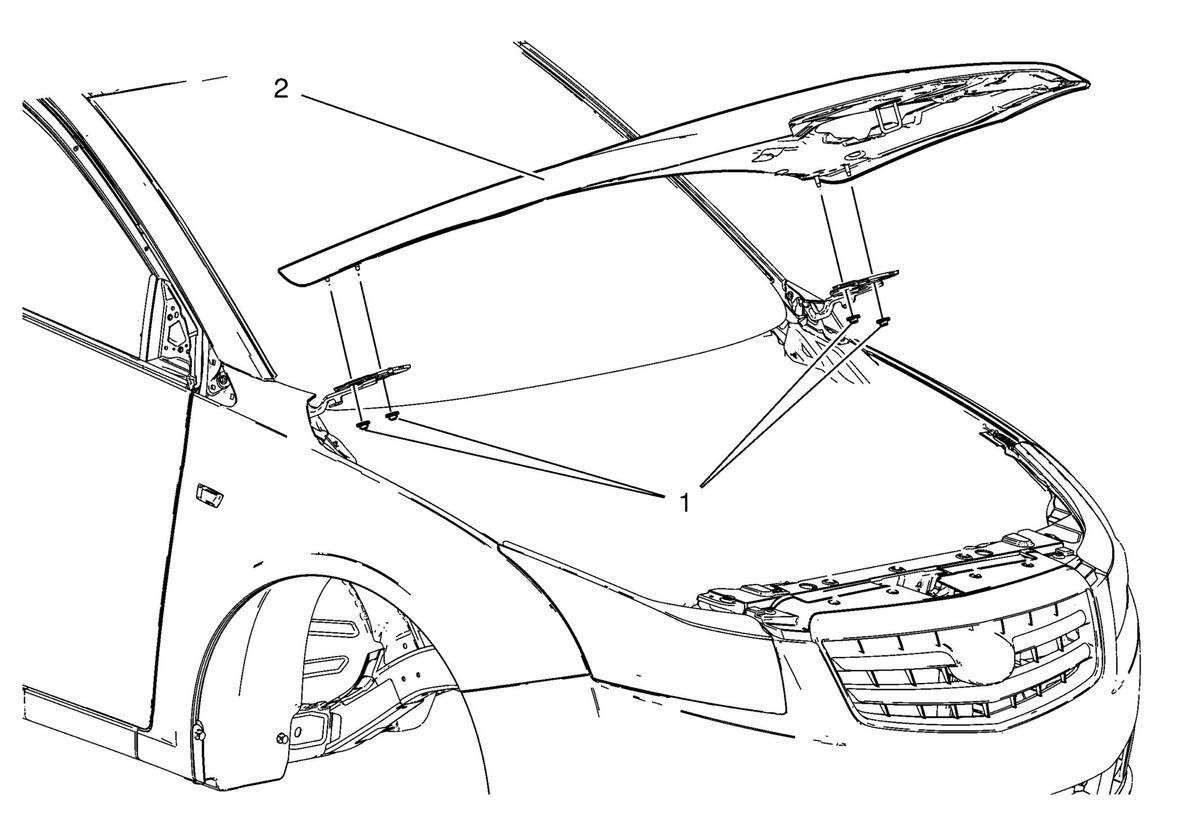

Fig 1: Hood Hinge Reinforcement Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure Remove the windshield washer nozzle hose. Refer to Windshield Washer Nozzle Hose Replacement .
1	Hood Hinge Reinforcement Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Procedure Transfer components as necessary. Adjust hood as needed. Refer to Clearance and Flushness Specifications .

Callout

Component Name

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedure Remove the windshield washer nozzle hose. Refer to Windshield Washer Nozzle Hose Replacement .

Hood Hinge Reinforcement Nut (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Hood

Procedure

Transfer components as necessary.
Adjust hood as needed. Refer to Clearance and Flushness Specifications .
