Windshield Washer Nozzle Hose Replacement

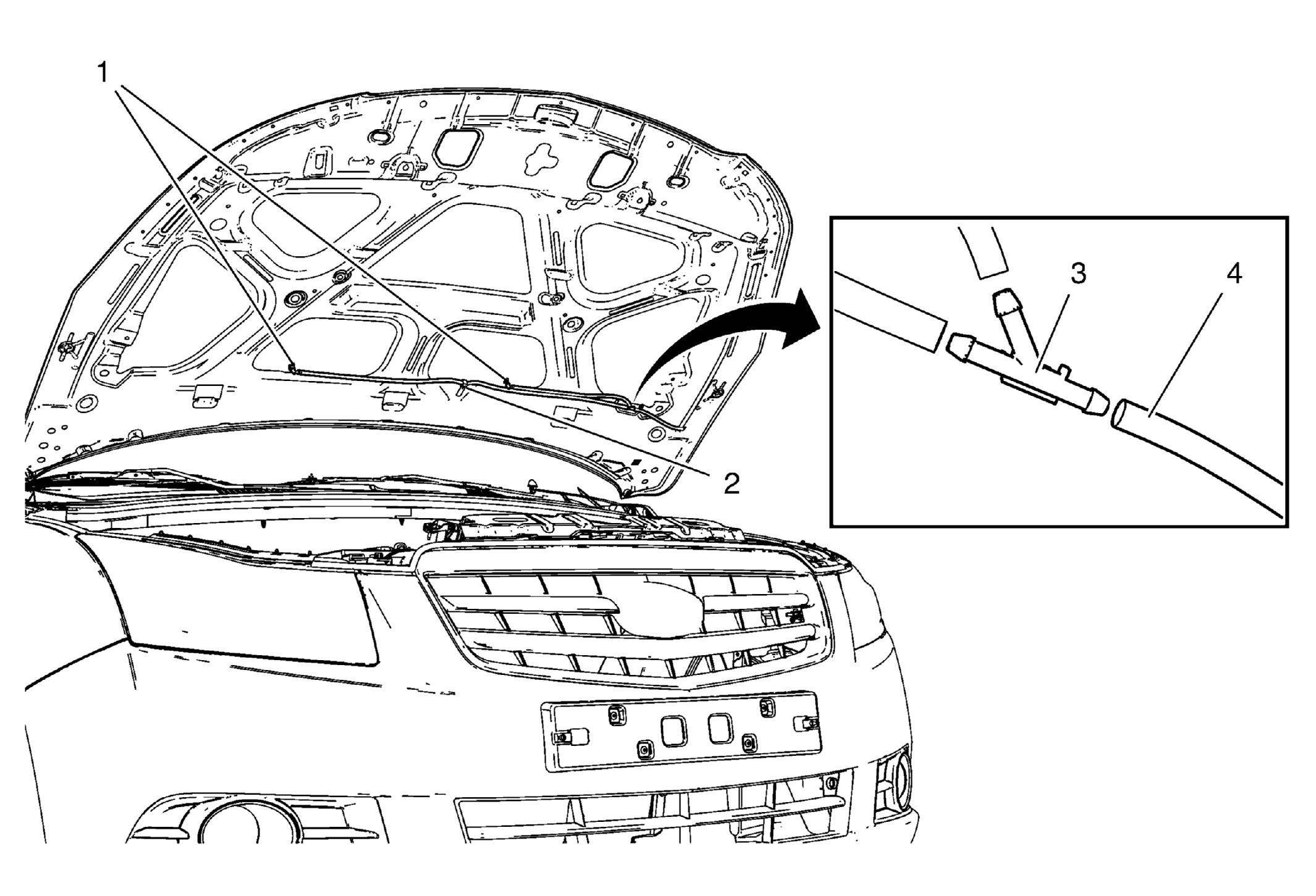

Fig 1: Windshield Washer Nozzle Hose, Pump Hose, Hose Connector And Hose Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the hood insulator. Refer to Hood Insulator Replacement . Place a clean container under the front driver side near where the windshield washer nozzle and windshield washer pump hose will be disconnected. Recover all lost windshield washer solvent.
1	Windshield Washer Nozzle Hose Procedure Disconnect the washer hose from both hood mounted washer nozzles.
2	Windshield Washer Hose Retainer to Hood Hinge
3	Windshield Washer Nozzle Hose Integral Connector Procedure Disconnect the hoses in order to remove the windshield washer nozzle hose.
4	Windshield Washer Pump Hose
