Hood Hold-Open Rod Replacement

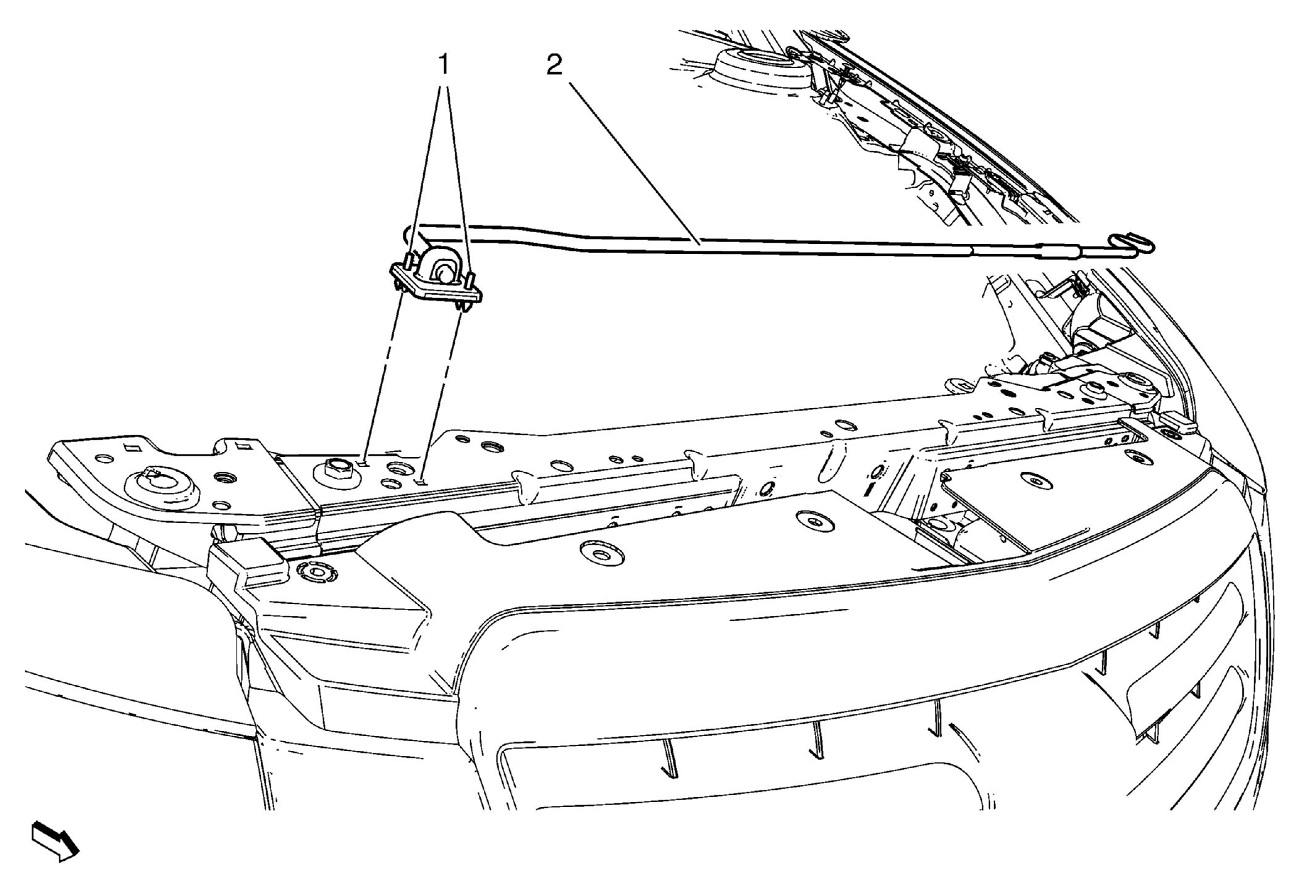

Fig 1: Hood Hold-Open Rod
GM2026963Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Hood Hold-Open Device Warning .
Preliminary Procedure Remove the radiator grille reinforcement support. Refer to Front Grille Support Replacement .
1 Hood Hold Open Rod Pivot (Qty: 2)
2 Hood Hold Open Rod
