Hood Hinge Replacement

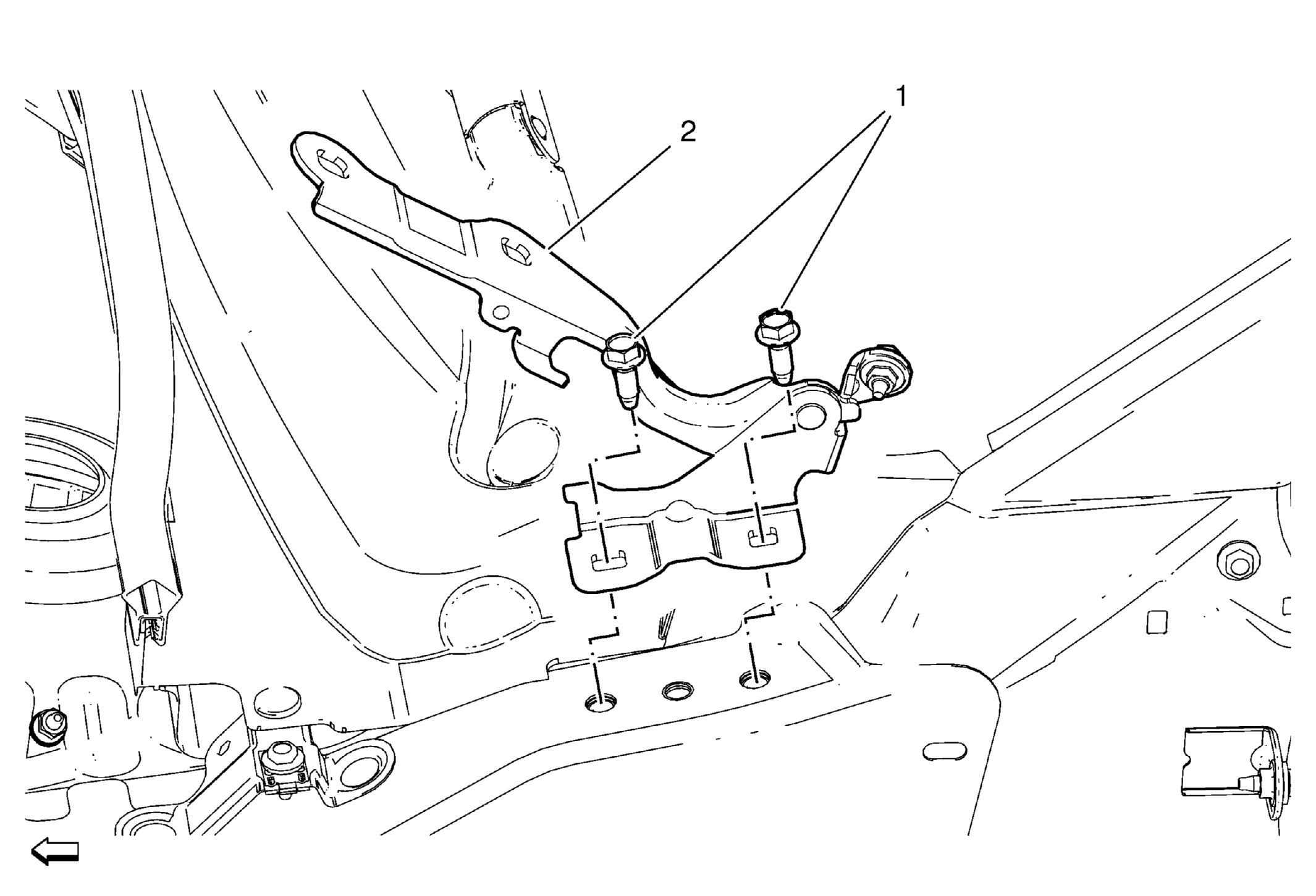

Fig 1: Hood Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the hood. Refer to Hood Replacement . Remove the front fender. Refer to Front Fender Replacement .
1	Hood Hinge Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 26 N.m (19 lb ft)
2	Hood Hinge

Callout

Component Name

Preliminary Procedure

Hood Hinge Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
26 N.m (19 lb ft)

Hood Hinge
