Fuel Tank Filler Pipe Housing Replacement

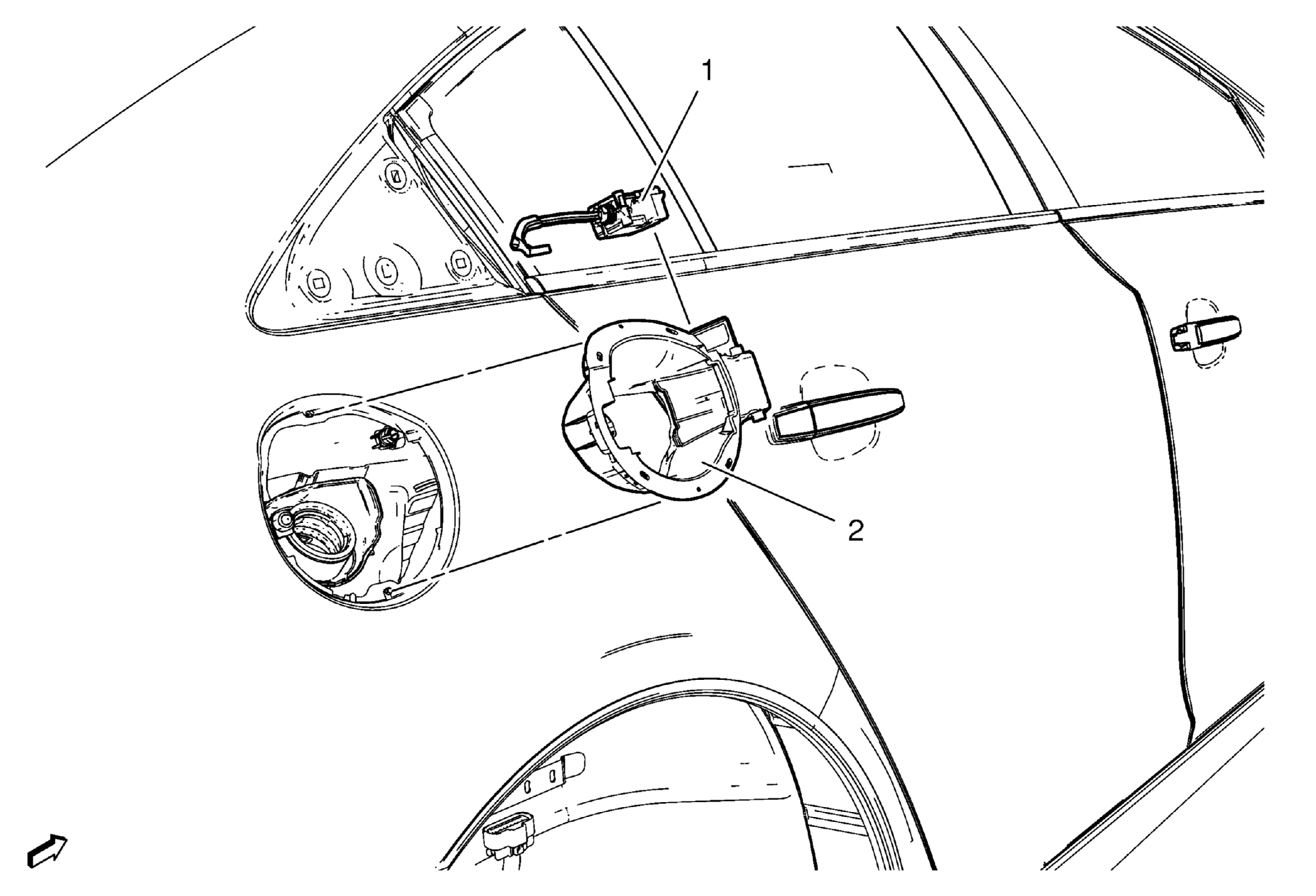

Fig 1: Fuel Tank Filler Pipe Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
1	Fuel Tank Filler Door Lock Actuator Procedure  Disconnect electrical connector.
2	Fuel Tank Filler Pipe Housing Procedure  Unclip 4 clips and remove. TIP:  Push fuel tank filler door lock actuator locking rod in closed position.
