Front Side Door Check Replacement

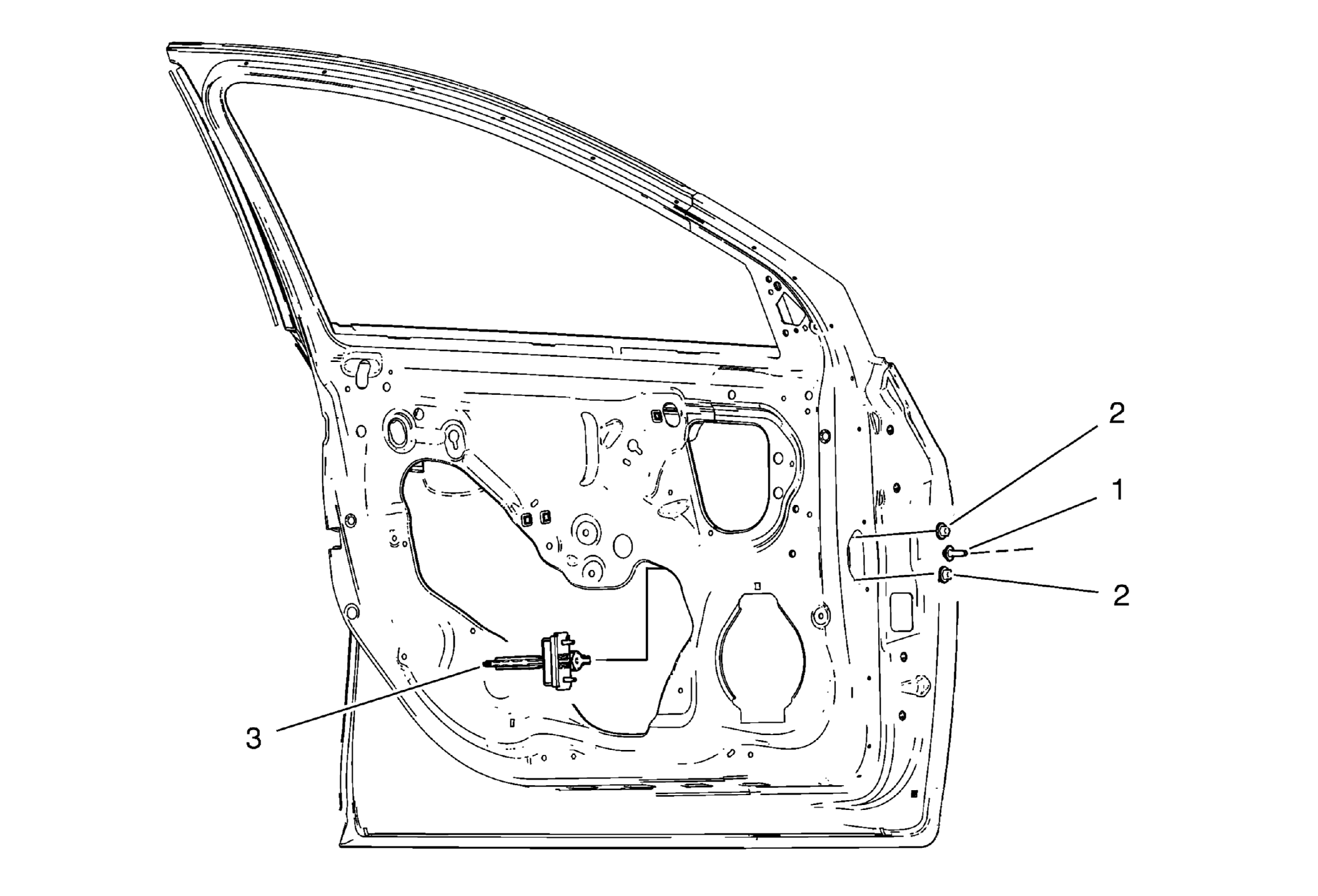

Fig 1: Front Side Door Check

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove front side door trim panel. Refer to Front Side Door Trim Replacement . Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Check Link Bolt CAUTION: Refer to Fastener Caution Procedure Place the door in the full open position. Tighten 25 N.m (18 lb ft)
2	Front Side Door Check Link Nut (Qty: 2) Procedure Remove the water deflector. Tighten 9 N.m (80 lb in)
3	Front Side Door Check
