Removal Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tail lamps. Refer to Tail Lamp Replacement .
Remove the rear wheelhouse liner bolts (1) on both sides.

Fig 1: Rear Wheelhouse Liner And Bolts
Courtesy of GENERAL MOTORS COMPANY
Remove the rear bumper fascia lower retainers (1).

Fig 2: Rear Bumper Fascia Lower Retainers
Courtesy of GENERAL MOTORS COMPANY

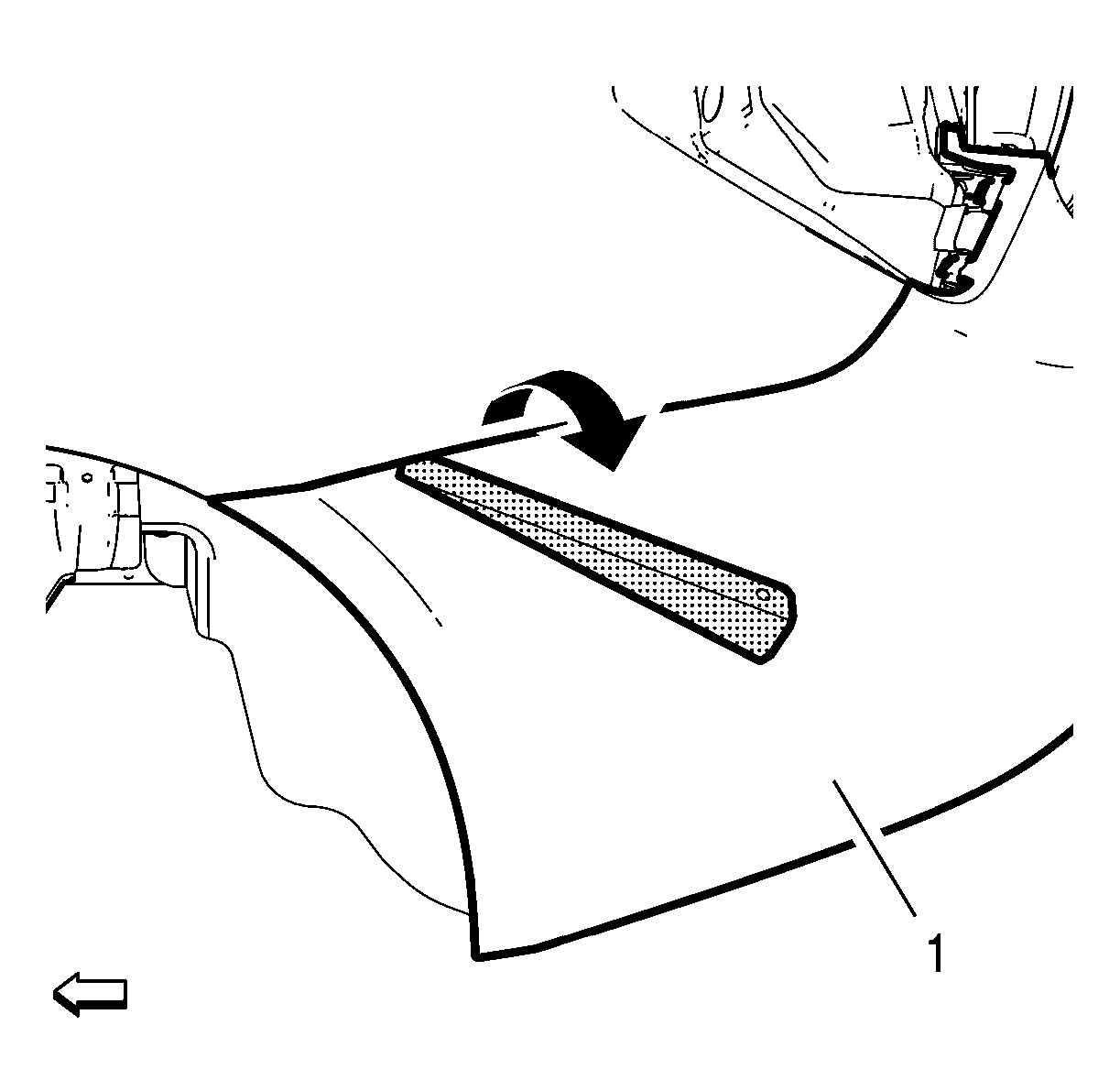

Pull the rear bumper fascia (1) carefully outward and use a plastic tool in order to release the retaining tabs from rear bumper fascia guides.

Fig 3: Carefully Pulling Rear Bumper Fascia Outward
Courtesy of GENERAL MOTORS COMPANY

NOTE: Use care when removing the fascia. Fascia might rip apart if forced.

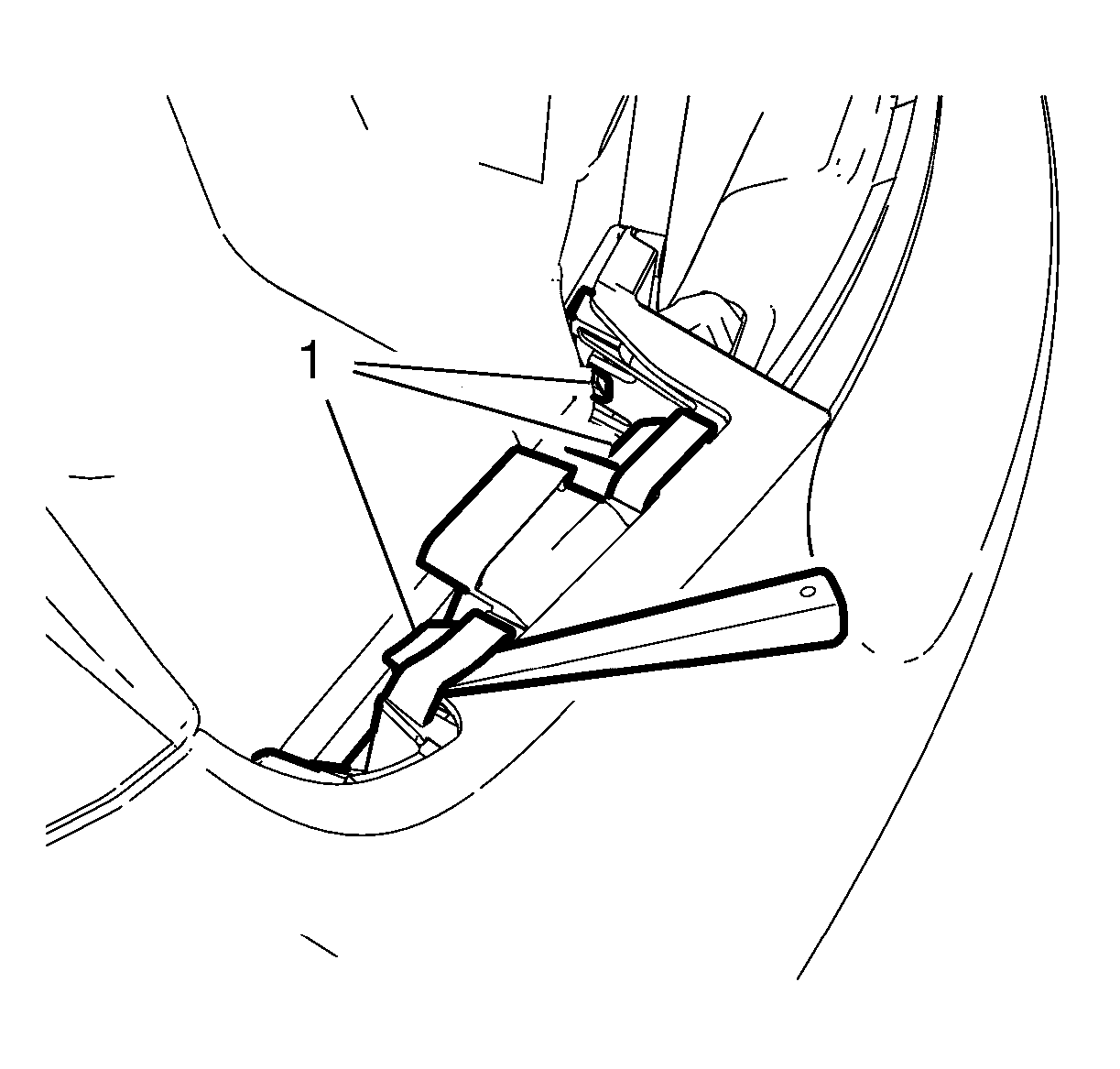

Use a plastic trim tool to release the retaining tabs of rear bumper fascia (1).

Fig 4: Releasing Rear Bumper Retainer Tabs
Courtesy of GENERAL MOTORS COMPANY
Disconnect any electrical connectors.
With the aid of an assistant remove the rear bumper fascia (1).

Fig 5: Rear Bumper Fascia
Courtesy of GENERAL MOTORS COMPANY
Transfer or replace other components as necessary.
