Tail Lamp Replacement

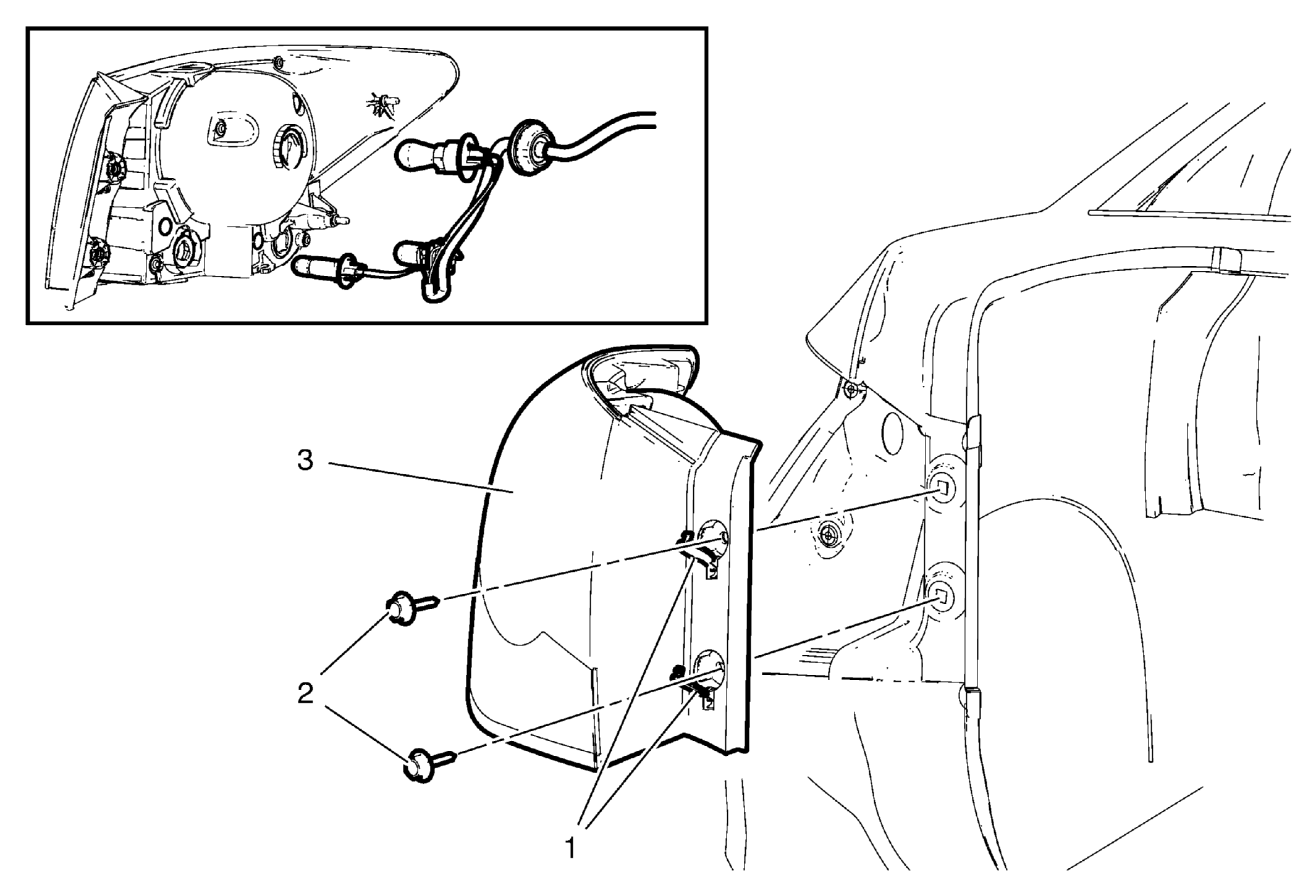

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the rear compartment lid.
1	Tail Lamp Bolt Opening Cover (Qty: 2) Procedure Open covers with suitable screw driver.
2	Tail Lamp Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Tail Lamp Assembly WARNING: Refer to Halogen Bulb Warning . Procedure Pull the tail lamp assembly straight rearward to disengage the tail lamp studs from the tail lamp pocket. Rotate the 3 tail lamp bulb sockets with bulbs counterclockwise and remove from the tail lamp housing in order to disengage the wiring harness from the tail lamp housing.
