Front Bumper Fascia Air Deflector Actuator Replacement

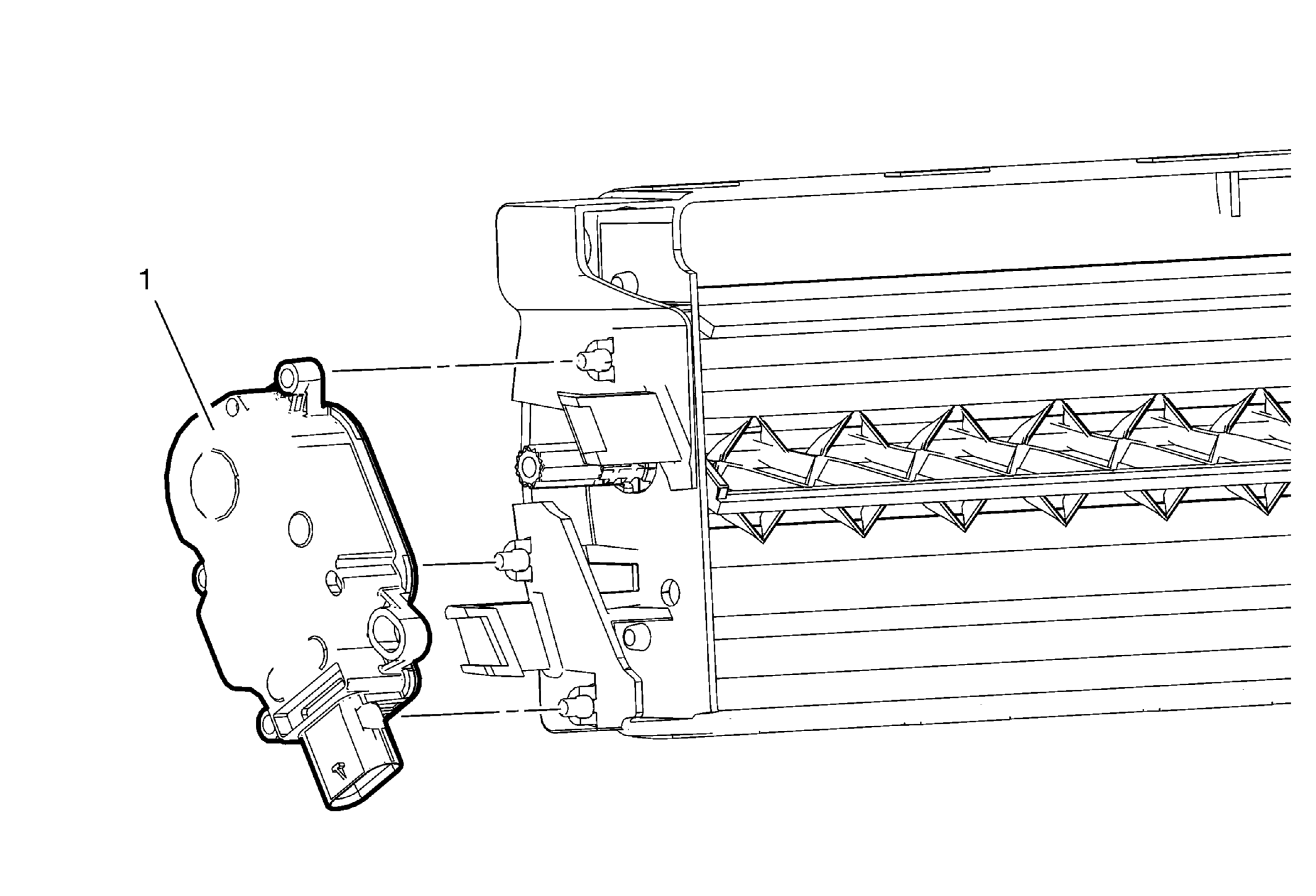

Fig 1: Front Bumper Fascia Air Deflector Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the aero shutter front bumper fascia air deflector. Refer to Aero Shutter Front Bumper Fascia Air Deflector Replacement .
1	Front Bumper Fascia Air Deflector Actuator Procedure  Unclip from aero shutter front bumper fascia air deflector. NOTE: The aero shutter actuator have splines and can be installed in multiple positions.
