Aero Shutter Front Bumper Fascia Air Deflector Replacement

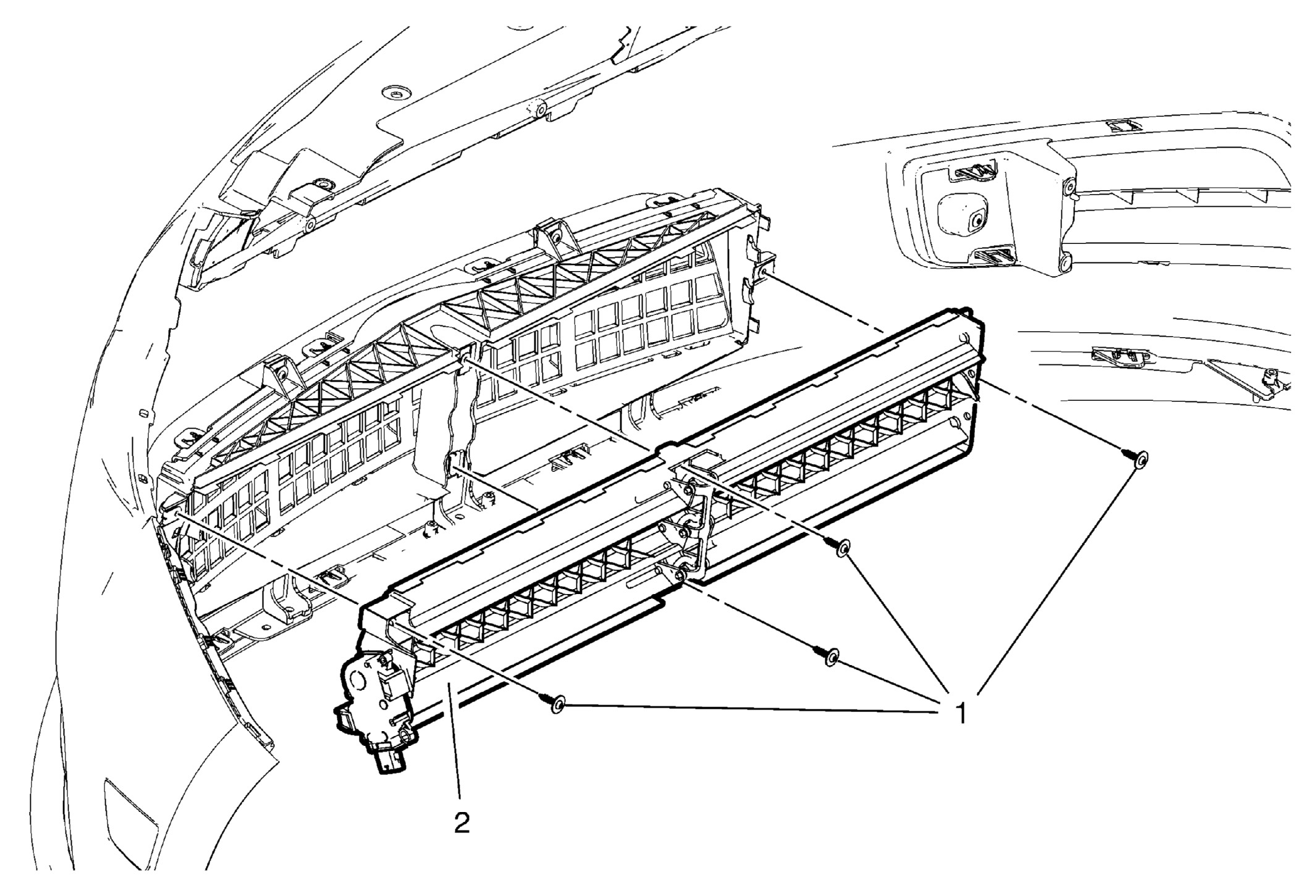

Fig 1: Aero Shutter Front Bumper Fascia Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Aero Shutter Front Bumper Fascia Air Deflector Bolt (Qty: 4)
2	Aero Shutter Front Bumper Fascia Air Deflector Procedure  Release the 3 integral clips retaining aero shutter to fascia.
