Rear Side Door Locking Rod Replacement

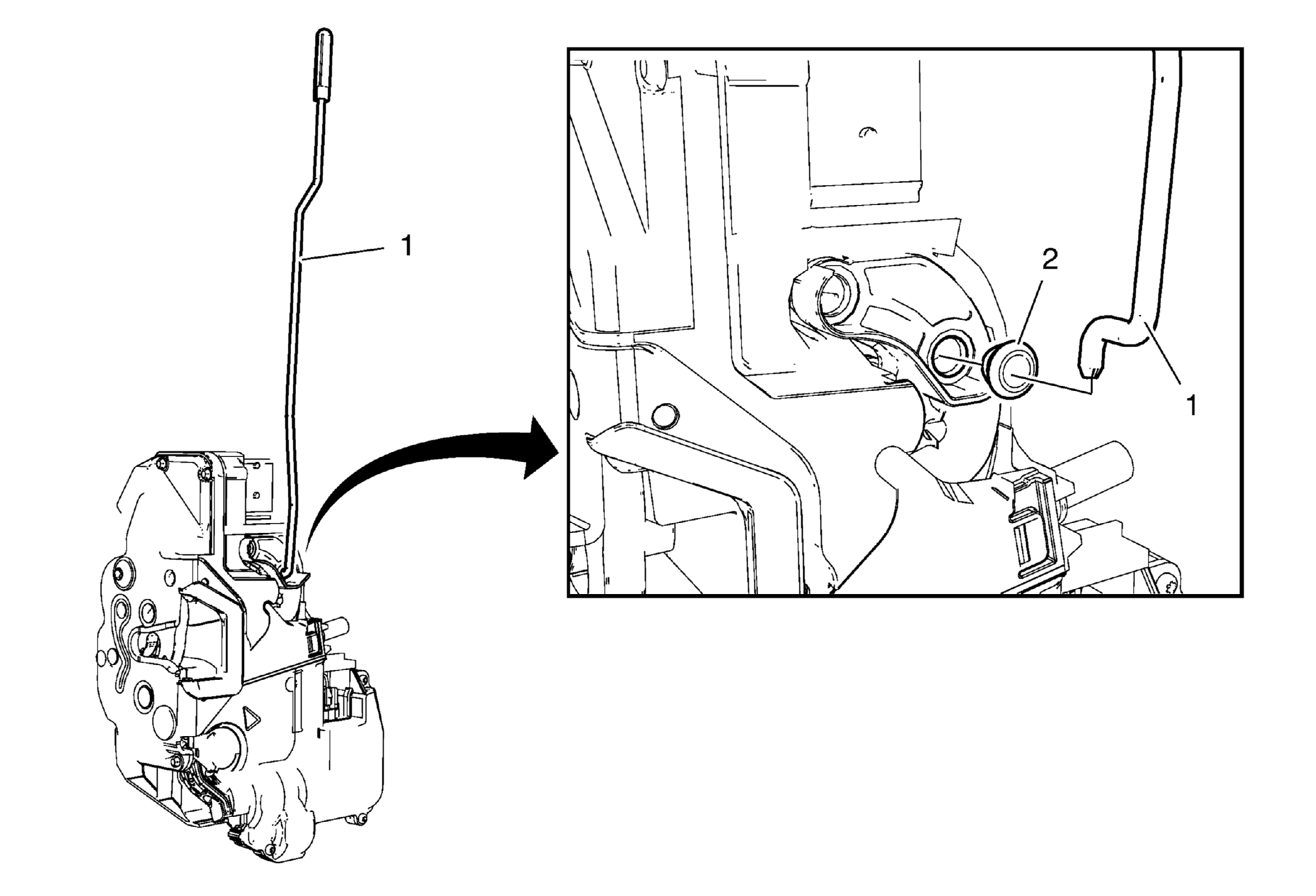

Fig 1: Rear Side Door Locking Rod And Clip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear side door latch. Refer to Rear Side Door Latch Replacement .
1	Rear Side Door Locking Rod
2	Rear Side Door Locking Rod Clip

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
Remove the rear side door latch. Refer to Rear Side Door Latch Replacement .

Rear Side Door Locking Rod

Rear Side Door Locking Rod Clip
