Rear Compartment Lid Release Switch Replacement

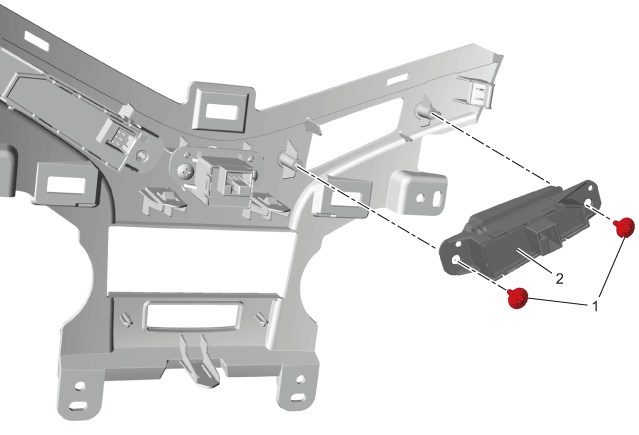

Fig 1: Rear Compartment Lid Release Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Panel Accessory Bezel Replacement
1	Rear Compartment Lid Release Switch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  1.2 N.m (11 lb in)
2	Rear Compartment Lid Release Switch Procedure  Disconnect the electrical connector.
