Windshield Wiper and Washer Switch Replacement

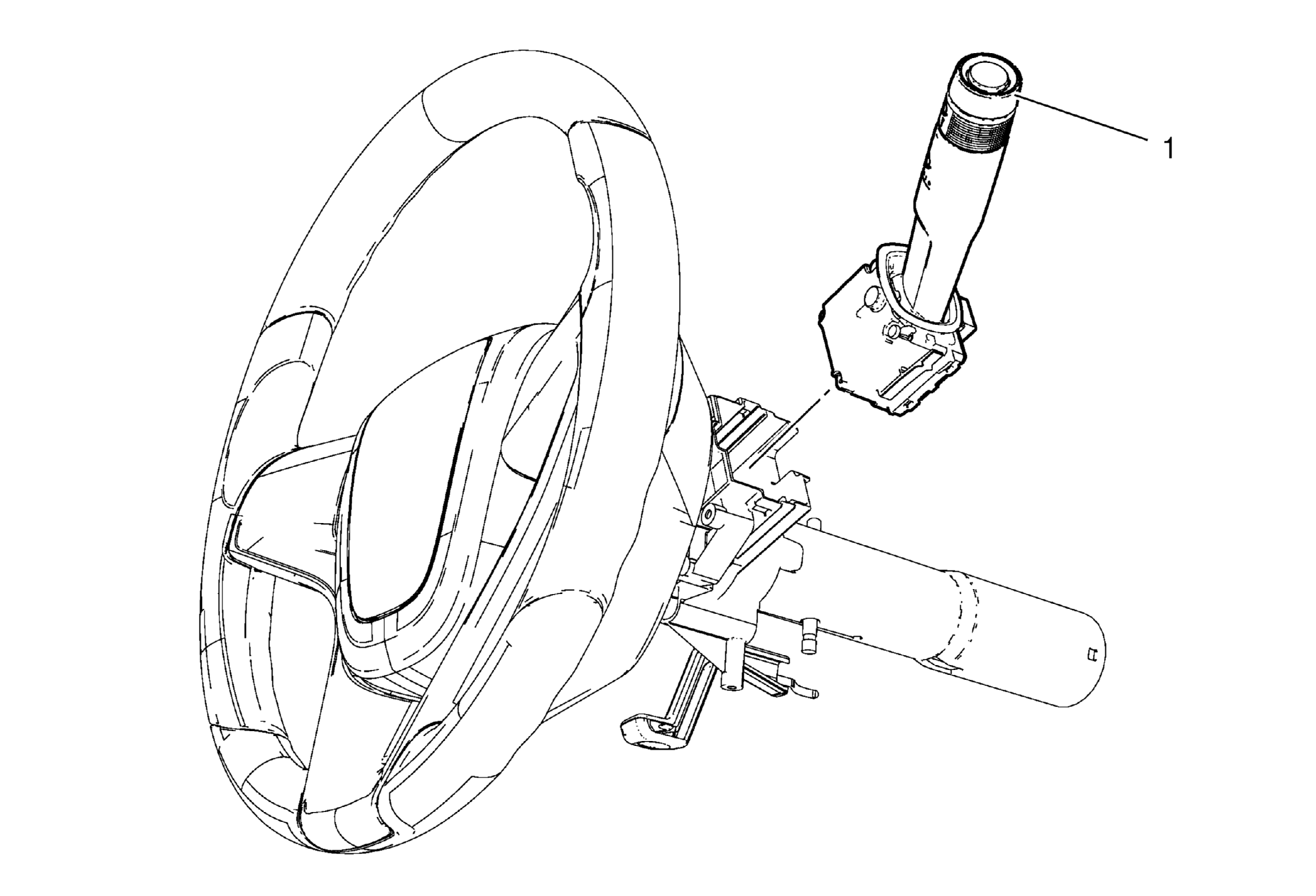

Fig 1: Windshield Wiper And Washer Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column trim covers. Refer to Steering Column Lower Trim Cover Replacement .
1	Windshield Wiper and Washer Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs to remove the windshield wiper and washer switch.

Callout

Component Name

Preliminary Procedure
Remove the steering column trim covers. Refer to Steering Column Lower Trim Cover Replacement .

Windshield Wiper and Washer Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs to remove the windshield wiper and washer switch.
