Windshield Wiper Motor Replacement

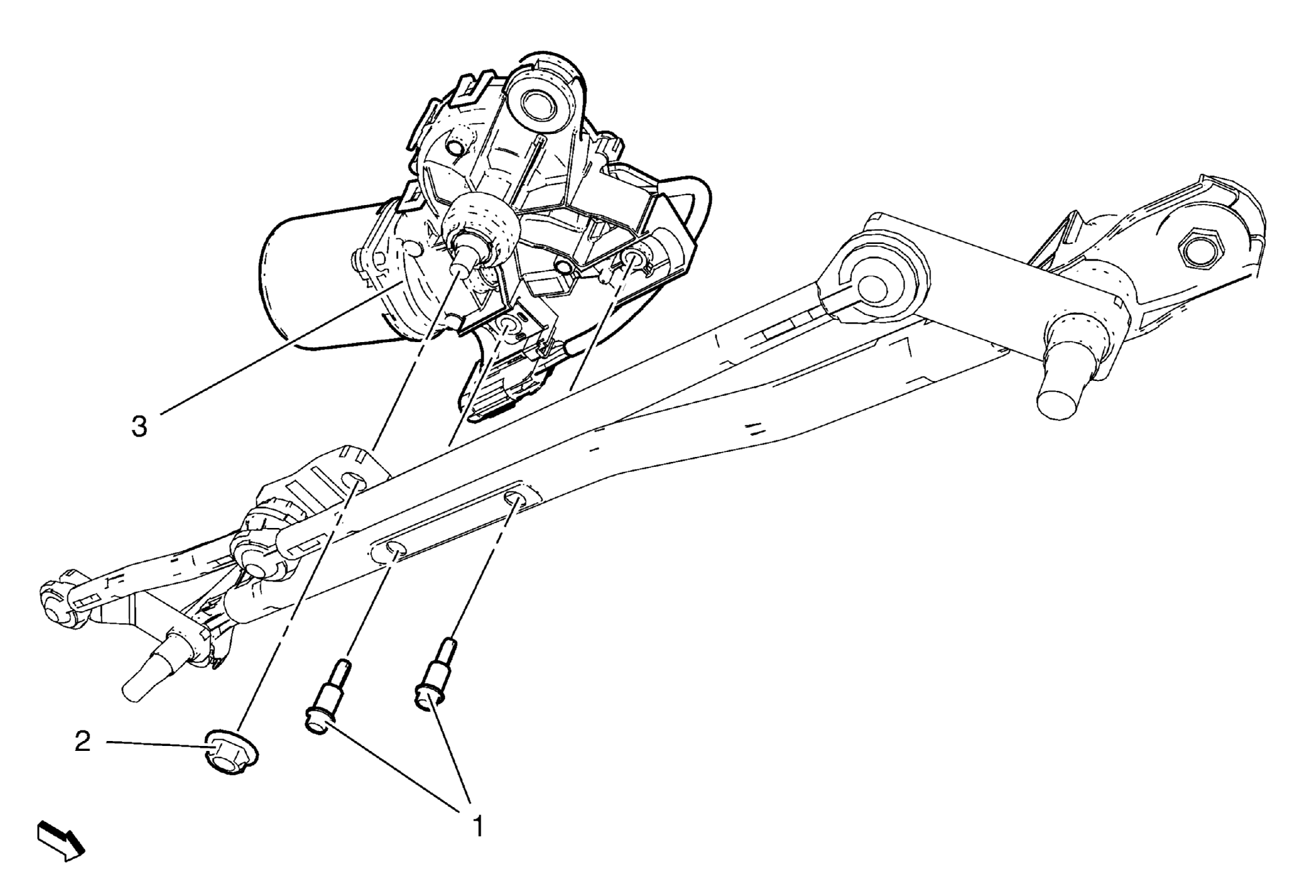

Fig 1: Windshield Wiper Motor, Bolts And Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the windshield wiper transmission. Refer to Windshield Wiper Transmission Replacement .
1	Windshield Wiper Motor Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb in)
2	Windshield Wiper Motor Nut Tighten 20 N.m (15 lb ft)
3	Windshield Wiper Motor Assembly
