Windshield Wiper Transmission Replacement

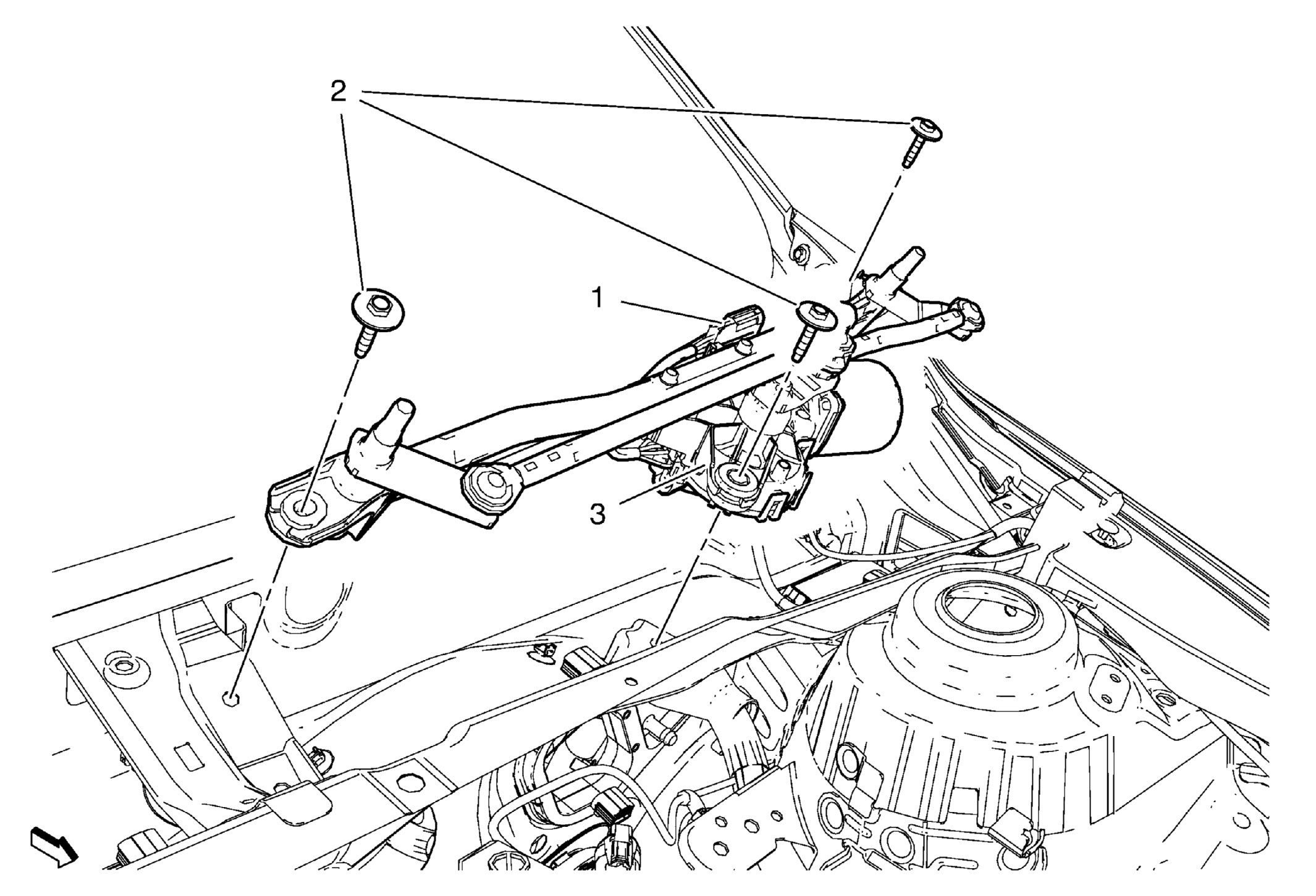

Fig 1: Windshield Wiper Transmission, Bolts And Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the wiper arms. Refer to Windshield Wiper Arm Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Electrical Connector
2	Windshield Wiper Transmission Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Windshield Wiper Transmission Procedure Remove components as needed.
