Windshield Washer Solvent Container Replacement

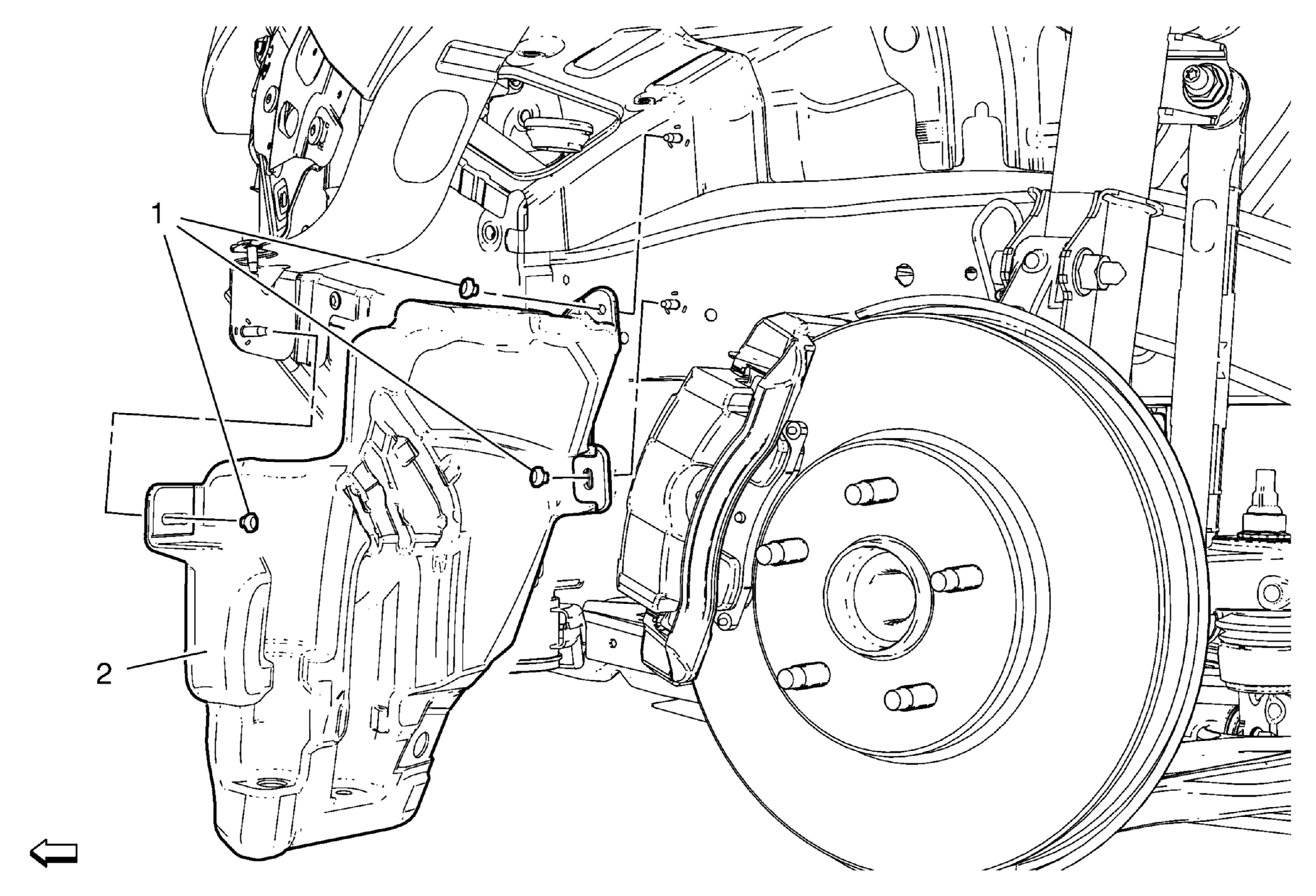

Fig 1: Windshield Washer Solvent Container And Nuts
GM2192076Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement
  2. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  3. Remove the windshield washer pump. Refer to Windshield Washer Pump Replacement .
1 Windshield Washer Solvent Container Nut (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)
2 Windshield Washer Solvent Container
