Tail Lamp Control Module with Bulb Replacement

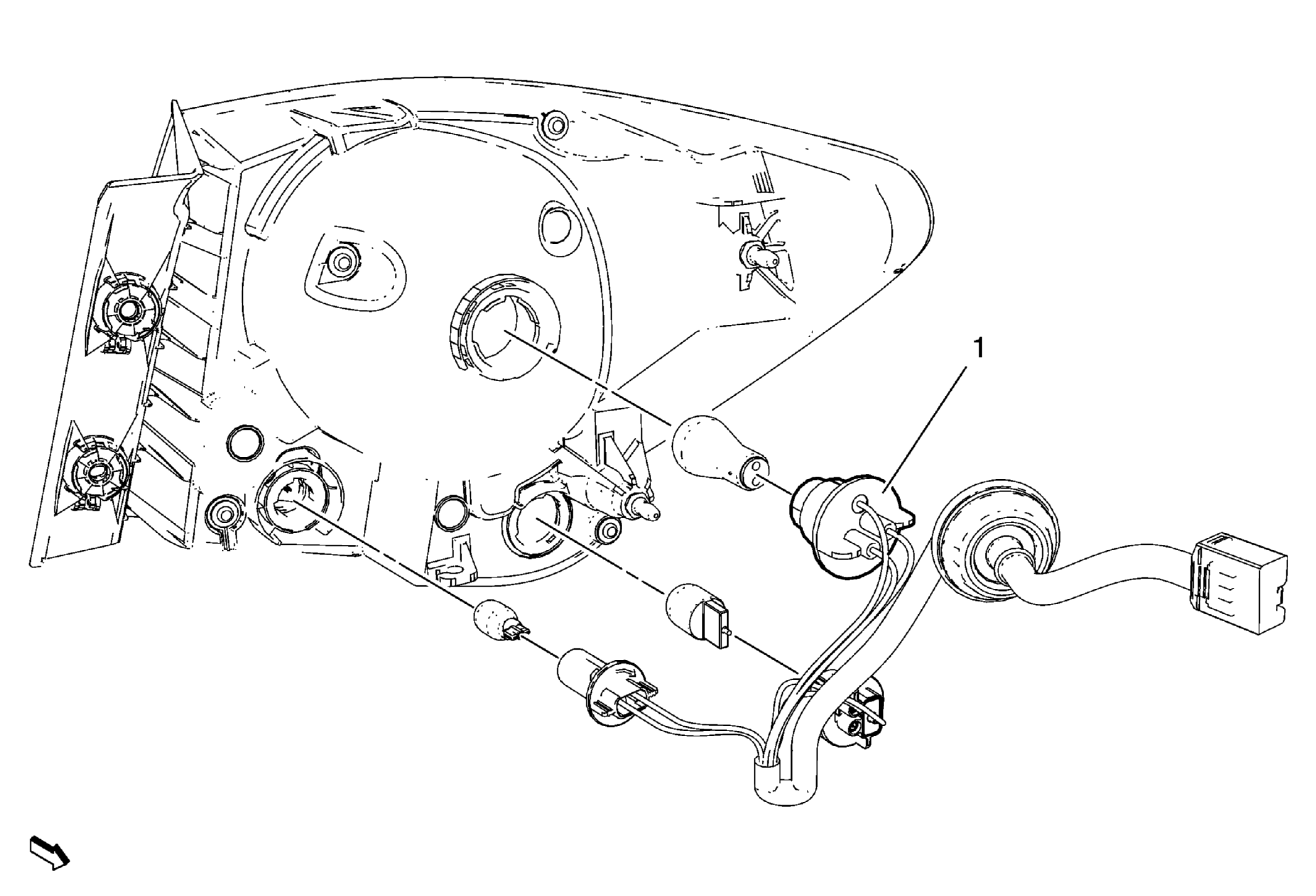

Fig 1: Tail Lamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tail lamp assembly. Refer to Tail Lamp Replacement .
1	Tail Lamp Control Module Procedure Rotate the tail lamp control module counterclockwise and remove from the tail lamp housing. Change bulb, as needed.

Callout

Component Name

Preliminary Procedures
Remove the tail lamp assembly. Refer to Tail Lamp Replacement .

Tail Lamp Control Module

Procedure

Rotate the tail lamp control module counterclockwise and remove from the tail lamp housing.
Change bulb, as needed.
