Tail Lamp Bulb Replacement

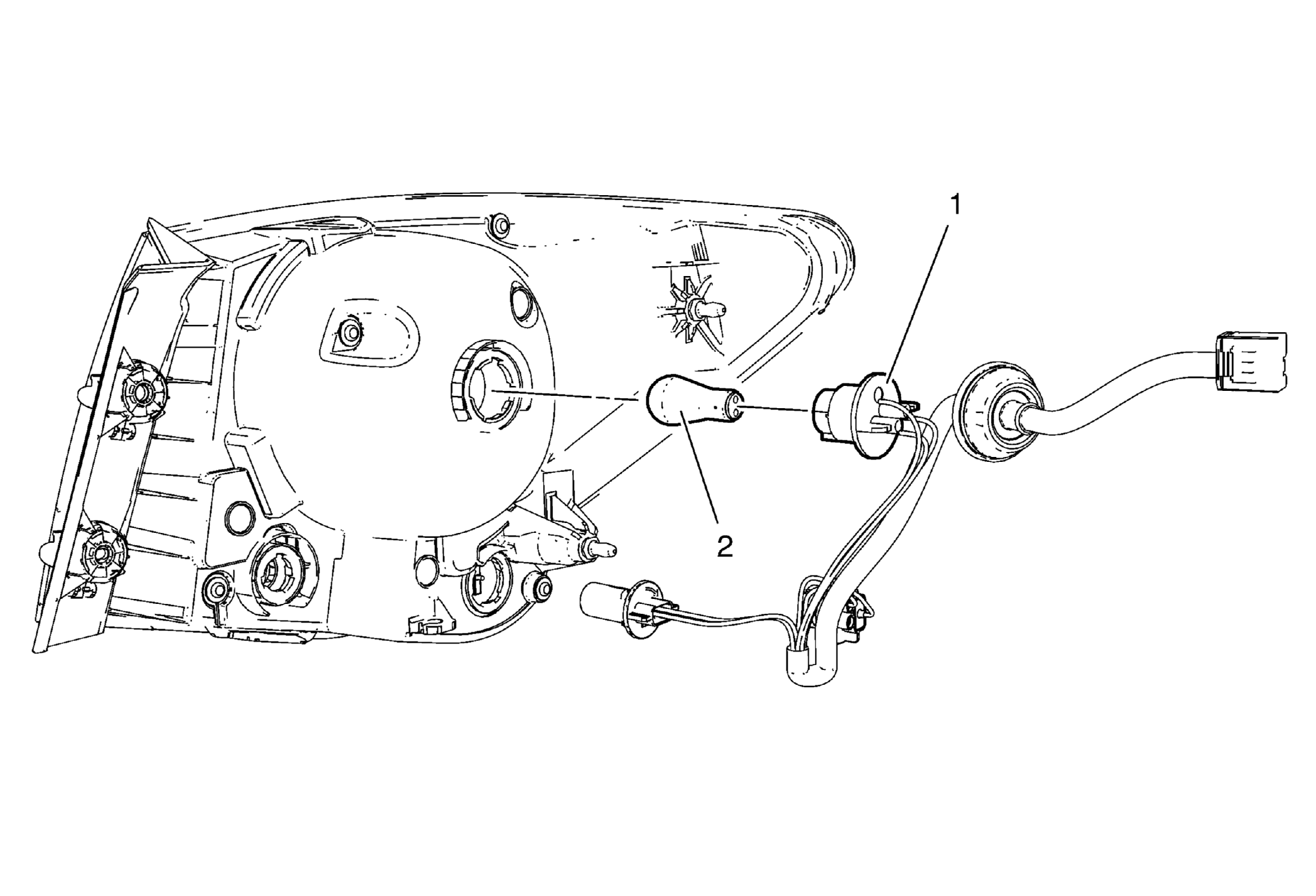

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tail lamp assembly. Refer to Tail Lamp Replacement .
1	Tail Lamp Bulb Harness Socket Procedure Rotate the bulb socket from the tail lamp housing.
2	Tail Lamp Bulb Procedure Pull the bulb straight from the lamp harness socket.
