Rear Fog Lamp Replacement

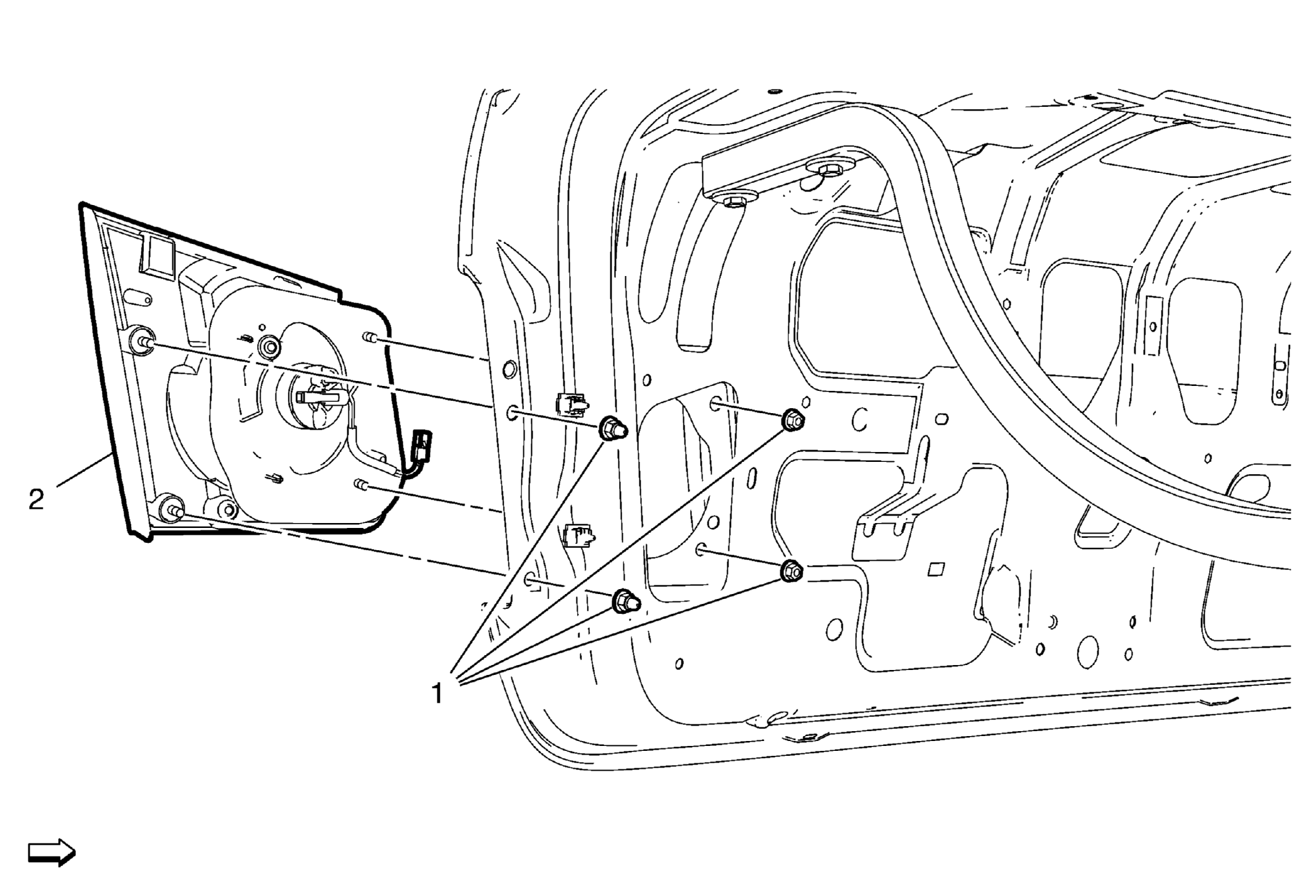

Fig 1: Rear Fog Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Fog Lamp Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear Fog Lamp WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect electrical connectors. Reach inside the rear compartment lid inner panel and remove the lower and upper retainer nuts securing the lamp assembly to the outer rear compartment lid panel. Push the inside edge of the lamp assembly outward from the rear outer compartment lid panel. Remove and transfer the bulb socket from the rear fog lamp assembly.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Fog Lamp Nut (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Rear Fog Lamp

WARNING: Refer to Halogen Bulb Warning .

Procedure

Disconnect electrical connectors.
Reach inside the rear compartment lid inner panel and remove the lower and upper retainer nuts securing the lamp assembly to the outer rear compartment lid panel.
Push the inside edge of the lamp assembly outward from the rear outer compartment lid panel.
Remove and transfer the bulb socket from the rear fog lamp assembly.
