Rear Fog Lamp Bulb Replacement

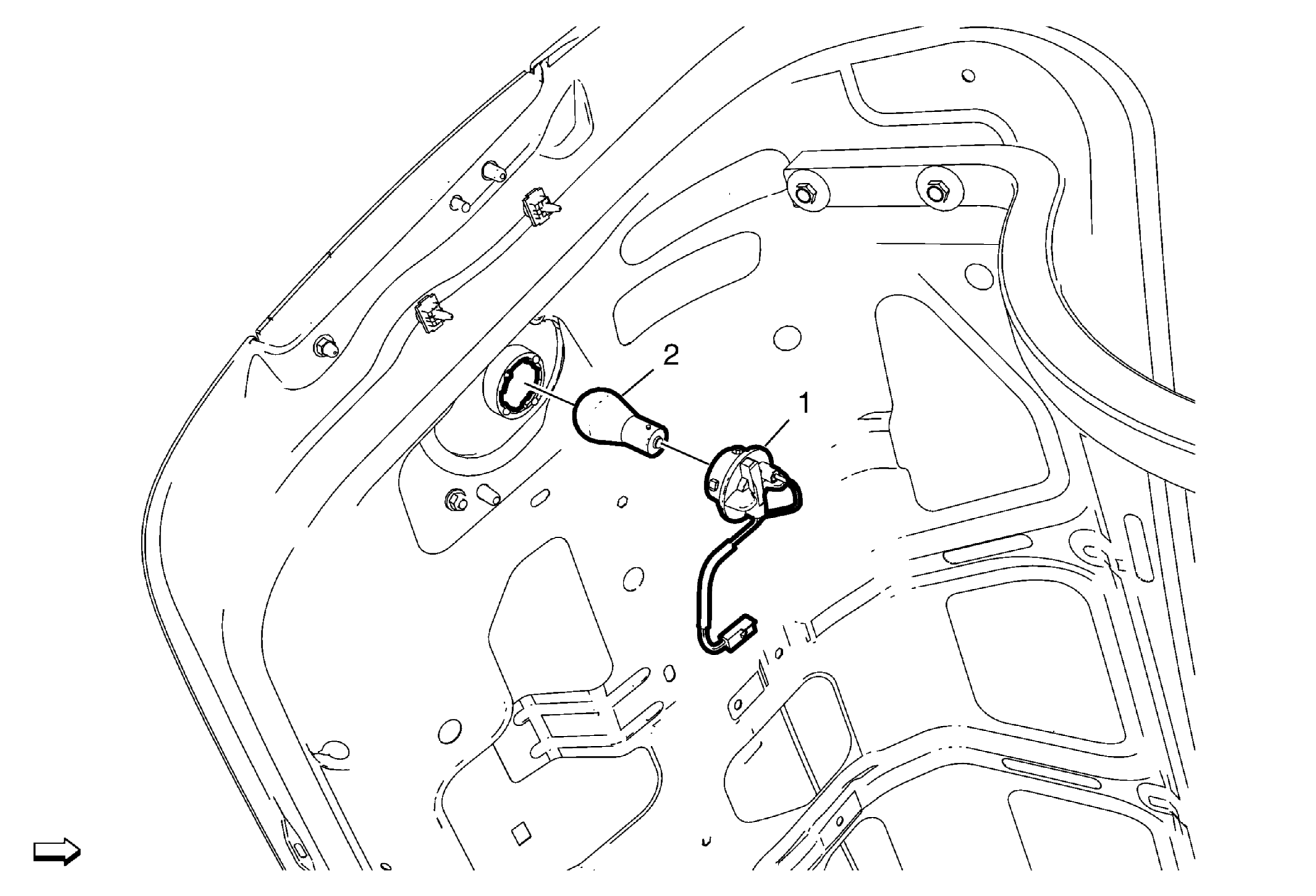

Fig 1: Rear Fog Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedures Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Fog Lamp Socket Procedure Rotate the lamp socket counterclockwise and remove from the tail lamp housing.
2	Rear Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning .
