Reading Lamp Replacement

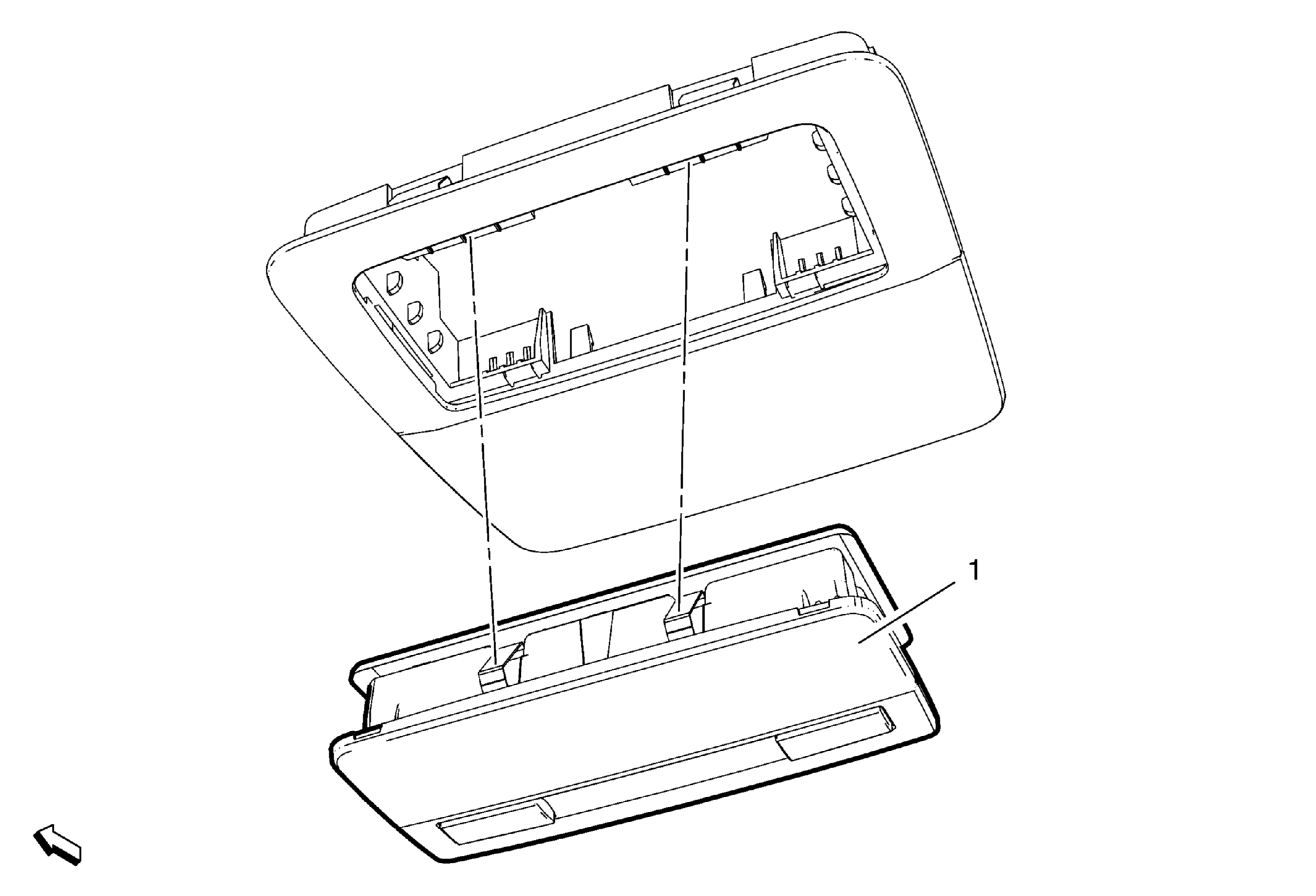

Fig 1: Reading Lamp
GM2373092Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove roof console. Refer to Roof Console Replacement .
1 Reading Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Change the bulb, as needed.
