Roof Console Replacement

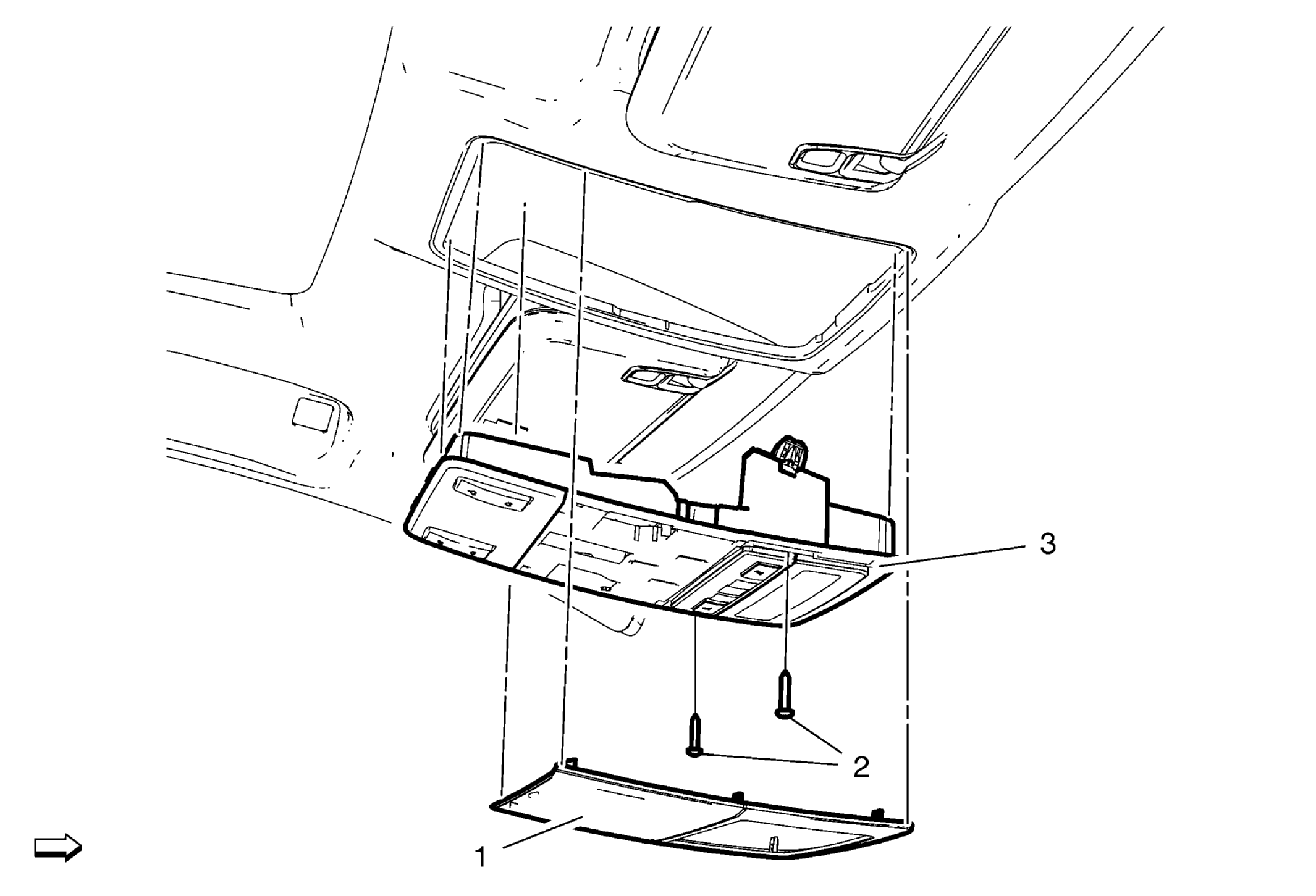

Fig 1: View Of Roof Console Assembly, Reading Lamp Bezel And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Reading Lamp Bezel
2	Roof Console Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Roof Console Assembly Procedure Disconnect the electrical connectors. If equipped, transfer the mobile telephone microphone when replacing the roof console. Refer to Mobile Telephone Microphone Replacement .

Callout

Component Name

Reading Lamp Bezel

Roof Console Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Roof Console Assembly

Procedure

Disconnect the electrical connectors.
If equipped, transfer the mobile telephone microphone when replacing the roof console. Refer to Mobile Telephone Microphone Replacement .
