Hazard Warning Switch Replacement

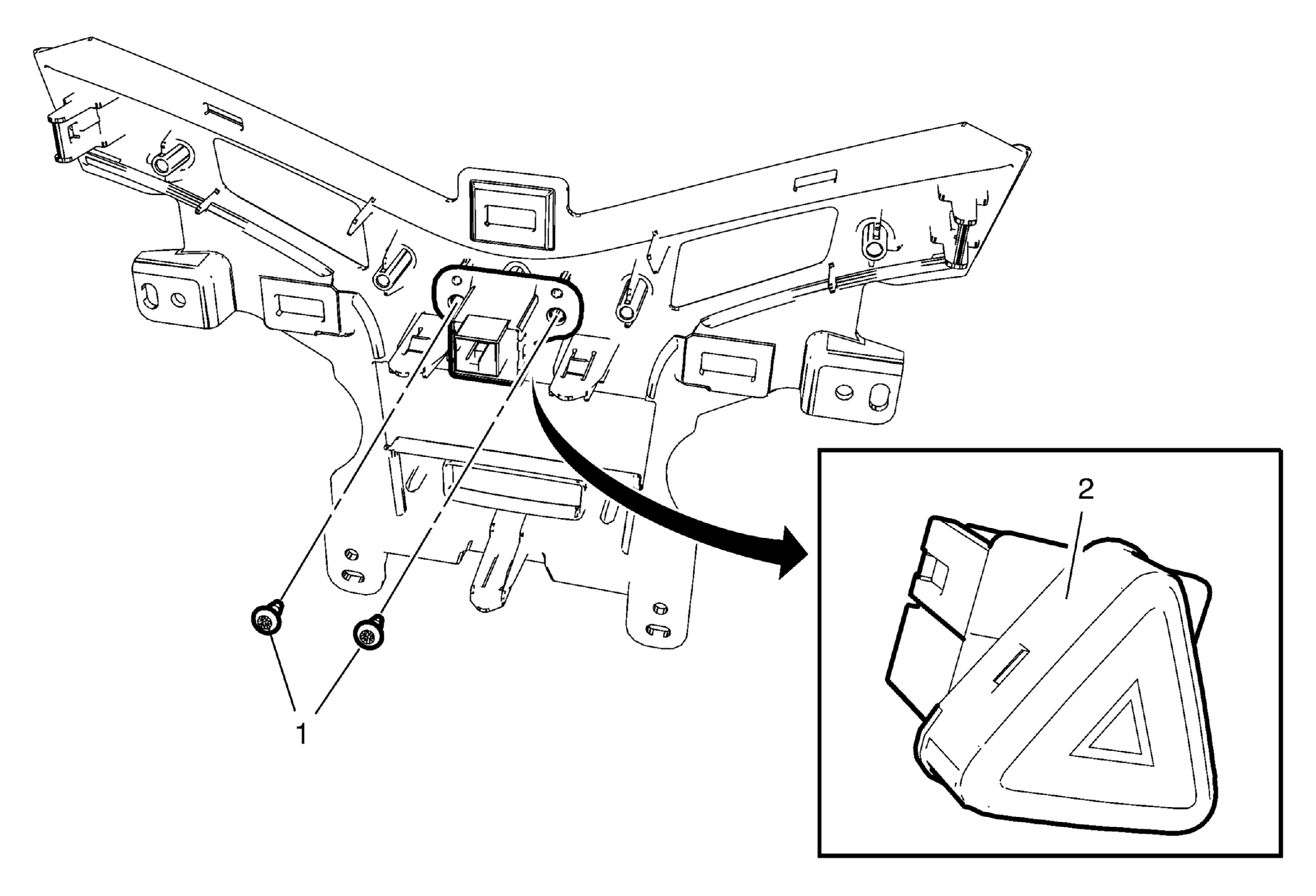

Fig 1: Hazard Warning Switch
GM2027521Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1 Hazard Warning Switch Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Hazard Warning Switch
