Brake Pedal Position Sensor Replacement

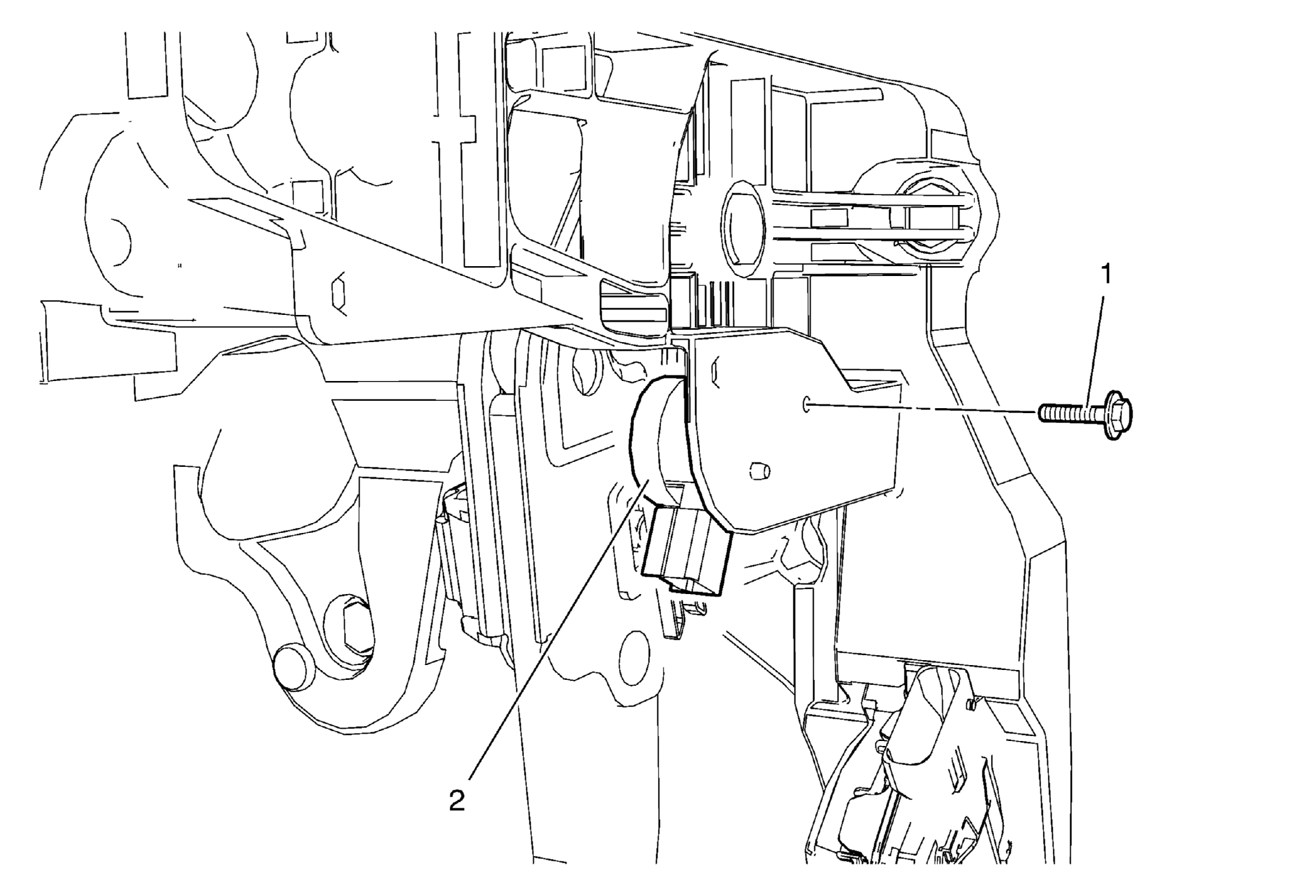

Fig 1: Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement (without Knee Airbag) and Instrument Panel Lower Trim Pad Cover Replacement (with Knee Airbag) .
1	Brake Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Brake Pedal Position Sensor Procedure Disconnect the electrical connector. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Brake Pedal Position Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

Brake Pedal Position Sensor

Procedure

Disconnect the electrical connector.
Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
