Radio Rear Side Door Speaker Replacement

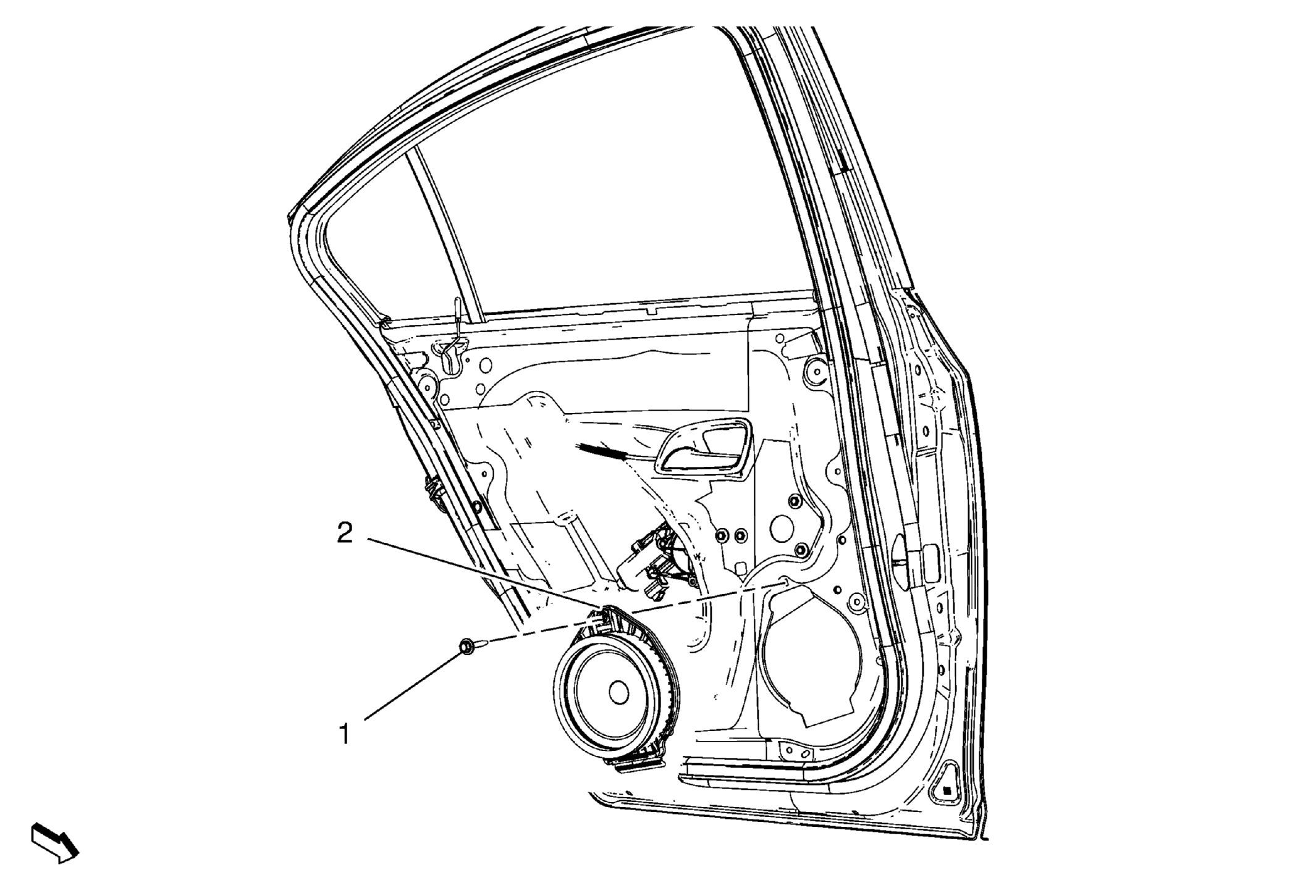

Fig 1: Radio Rear Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove rear side door trim replacement. Refer to Rear Side Door Trim Replacement .
1	Radio Rear Side Door Speaker Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Rear Side Door Speaker Procedure  Disconnect electrical connector.
