Radio Rear Compartment Speaker Replacement

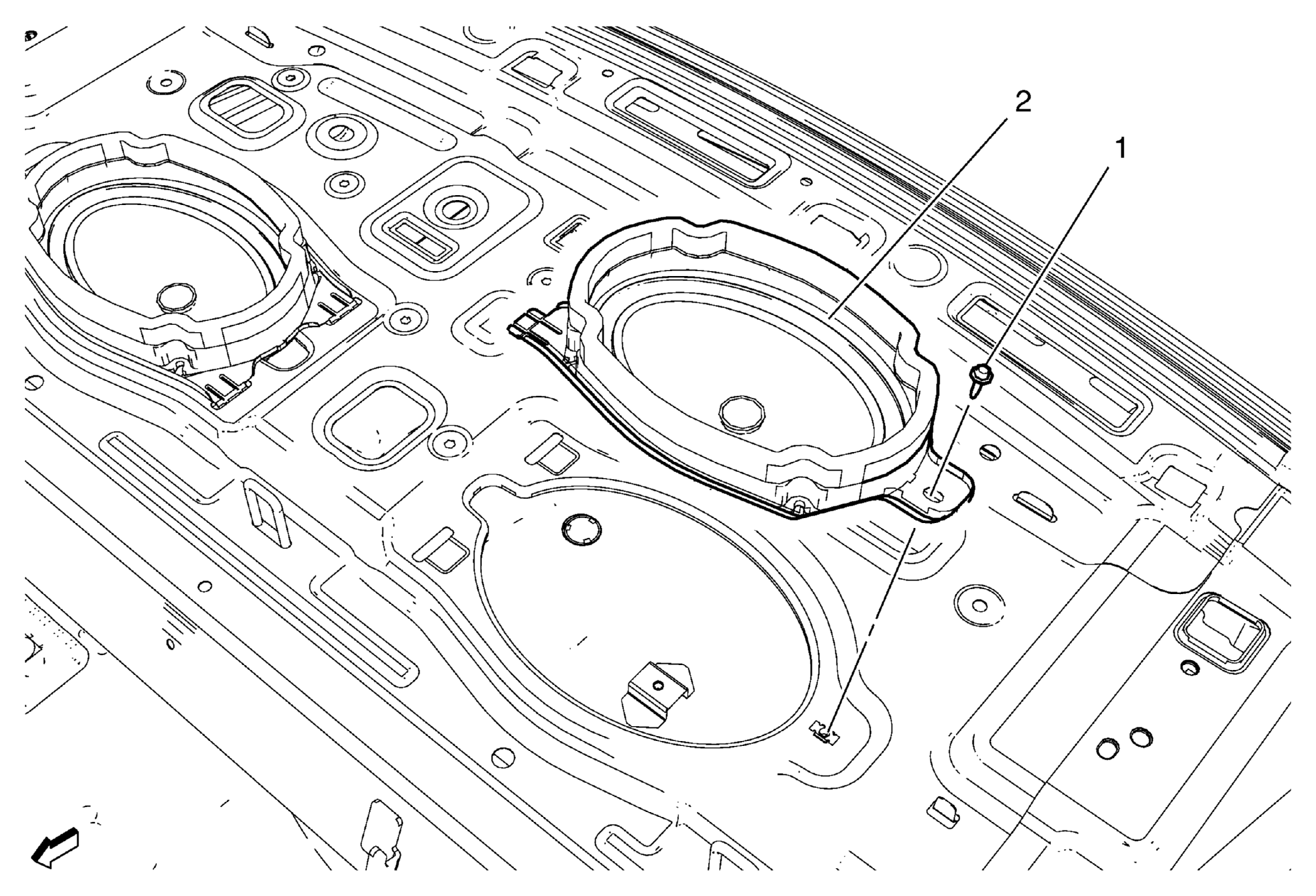

Fig 1: Radio Rear Compartment Speaker & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Radio Rear Speaker Compartment Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Rear Compartment Speaker Procedure  Disconnect electrical connector.
