Radio Front Side Door Speaker Replacement

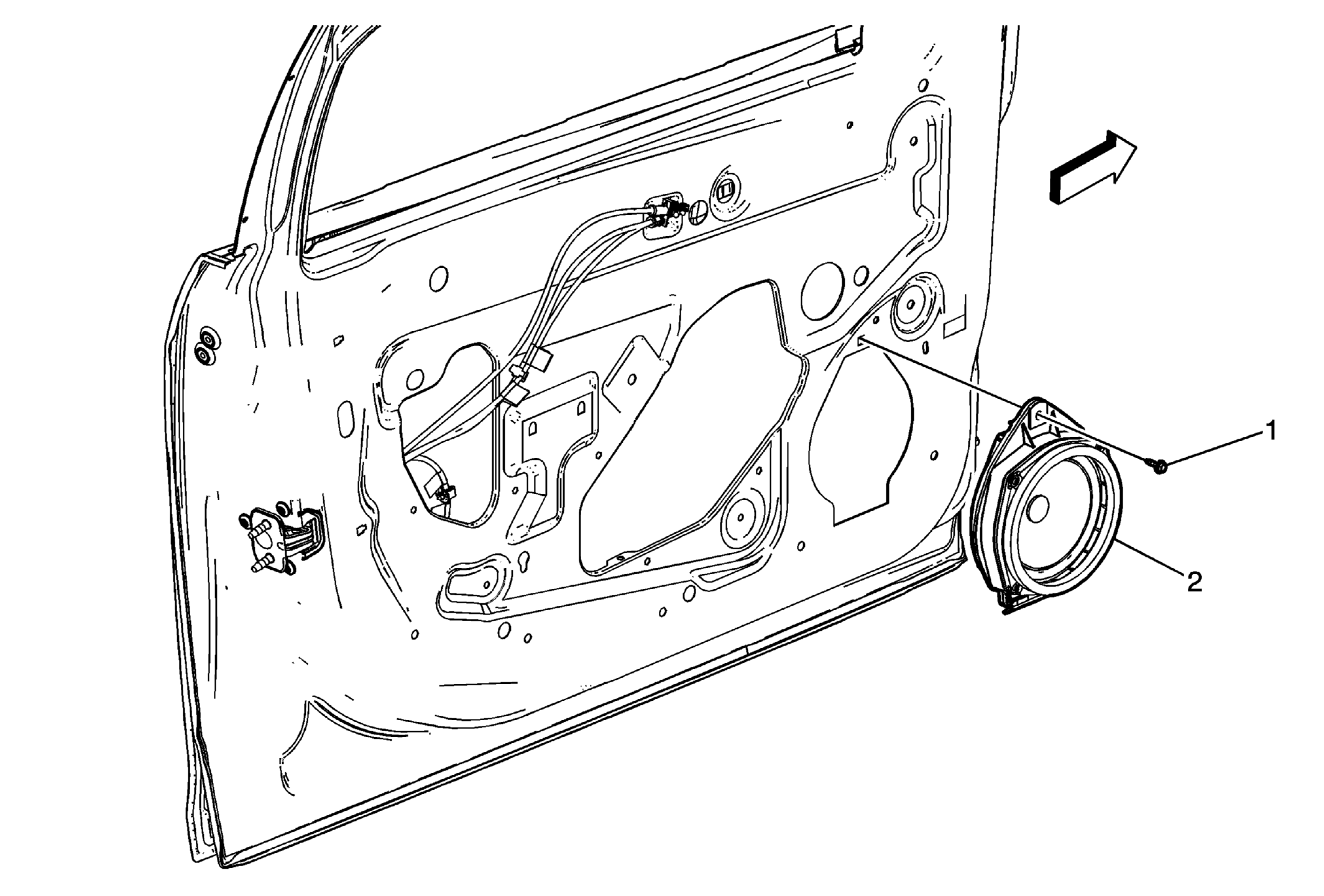

Fig 1: View Of Radio Front Side Door Lower Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove front side door trim replacement. Refer to Front Side Door Trim Replacement .
1	Radio Front Side Door Speaker Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Front Side Door Speaker Procedure  Disconnect the electrical connector.
