Radio Antenna Coil Replacement - High Side

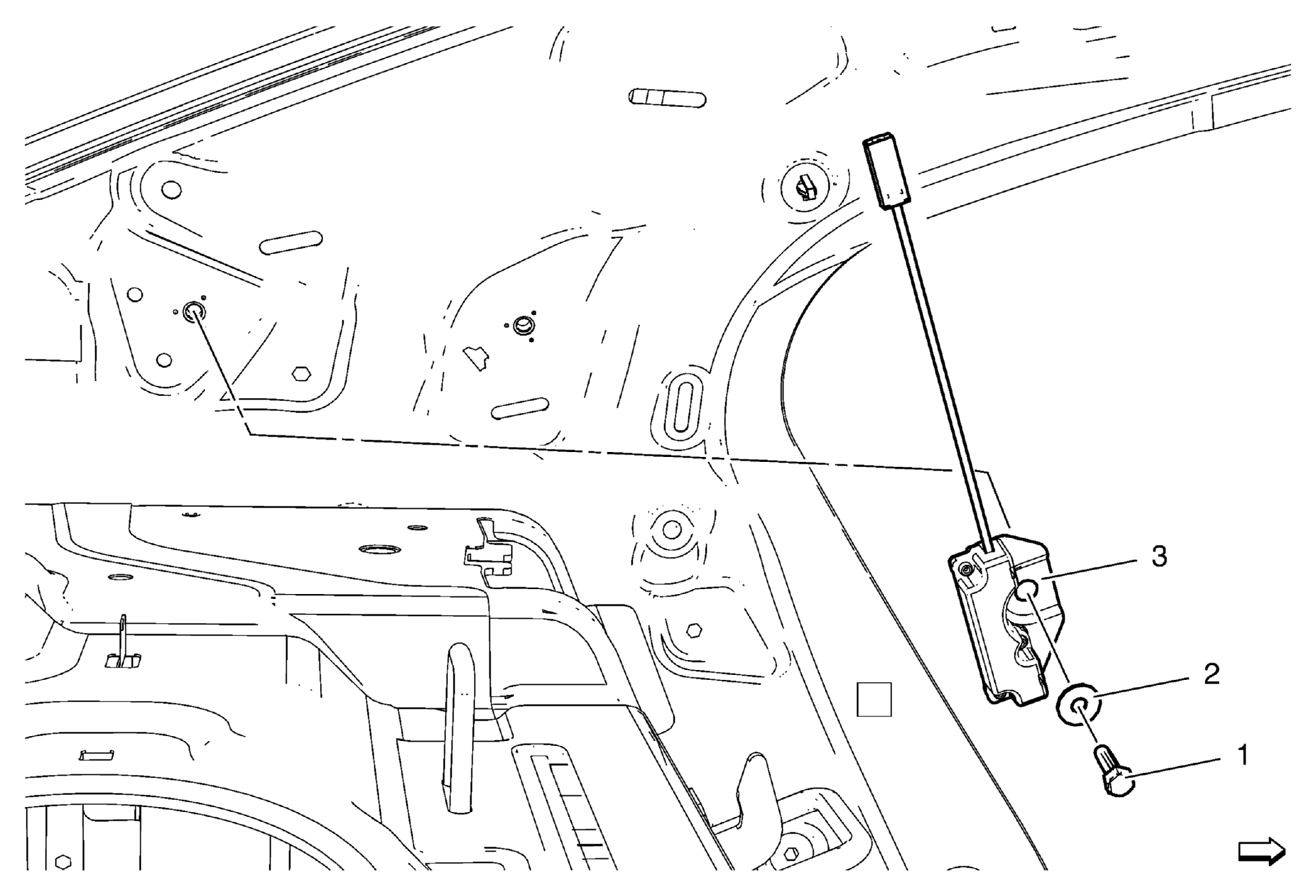

Fig 1: Radio Antenna Coil Replacement - High Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove quarter window garnish molding. Refer to Quarter Window Garnish Molding Replacement .
1	Radio Antenna High Side Coil Bolt CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
2	Radio Antenna High Side Coil Washer
3	Radio Antenna Coil - High Side Procedure  Disconnect electrical connector.
