Radio Antenna Coil Replacement - Ground Side

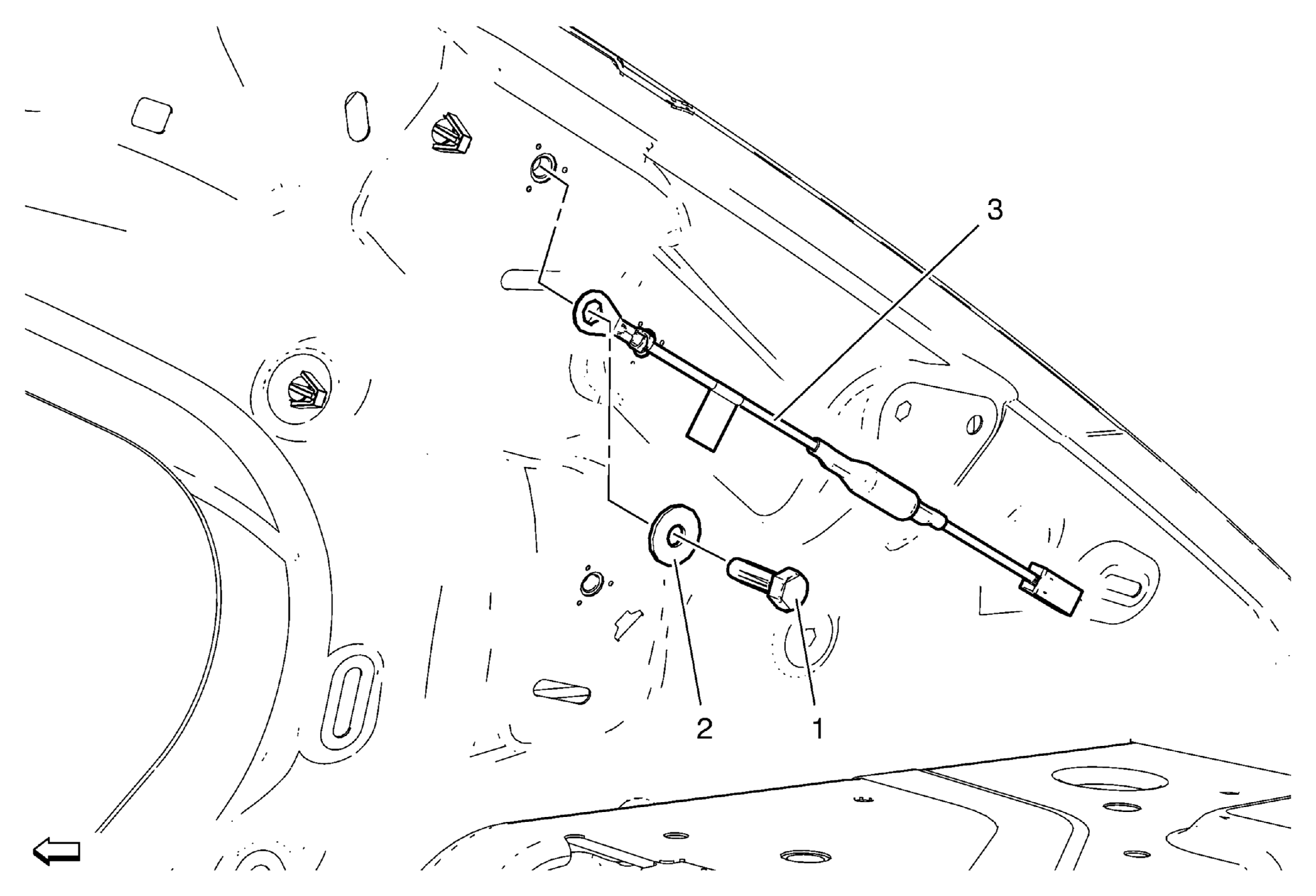

Fig 1: Radio Antenna Coil Replacement - Ground Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the quarter window garnish molding. Refer to Quarter Window Garnish Molding Replacement .
1	Radio Antenna Coil Bolt CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
2	Radio Antenna Coil Washer
3	Radio Antenna Coil - Ground Side Procedure  Disconnect electrical connector.
