Radio Antenna Cable Replacement (Radio Cable)

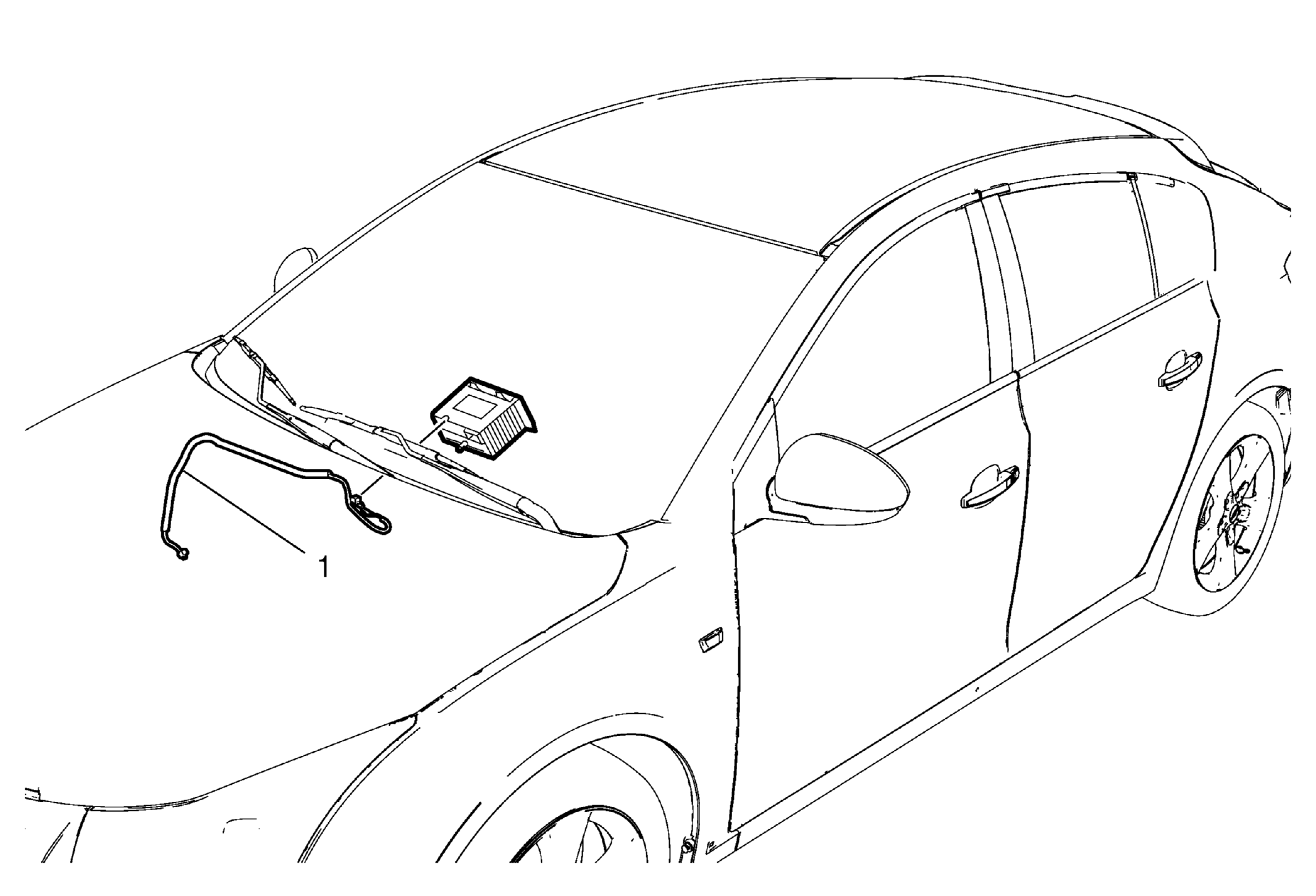

Fig 1: Radio Antenna Cable (Radio Cable)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Radio Antenna Cable Procedures Locate the radio antenna cable in the instrument panel wiring harness assembly. Carefully cut the electrical tape. Disconnect electrical connectors. Replace the radio antenna cable. Secure the radio antenna cable within the electrical conduit.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

Radio Antenna Cable

Procedures
