Rear Side Door Window Adjustment

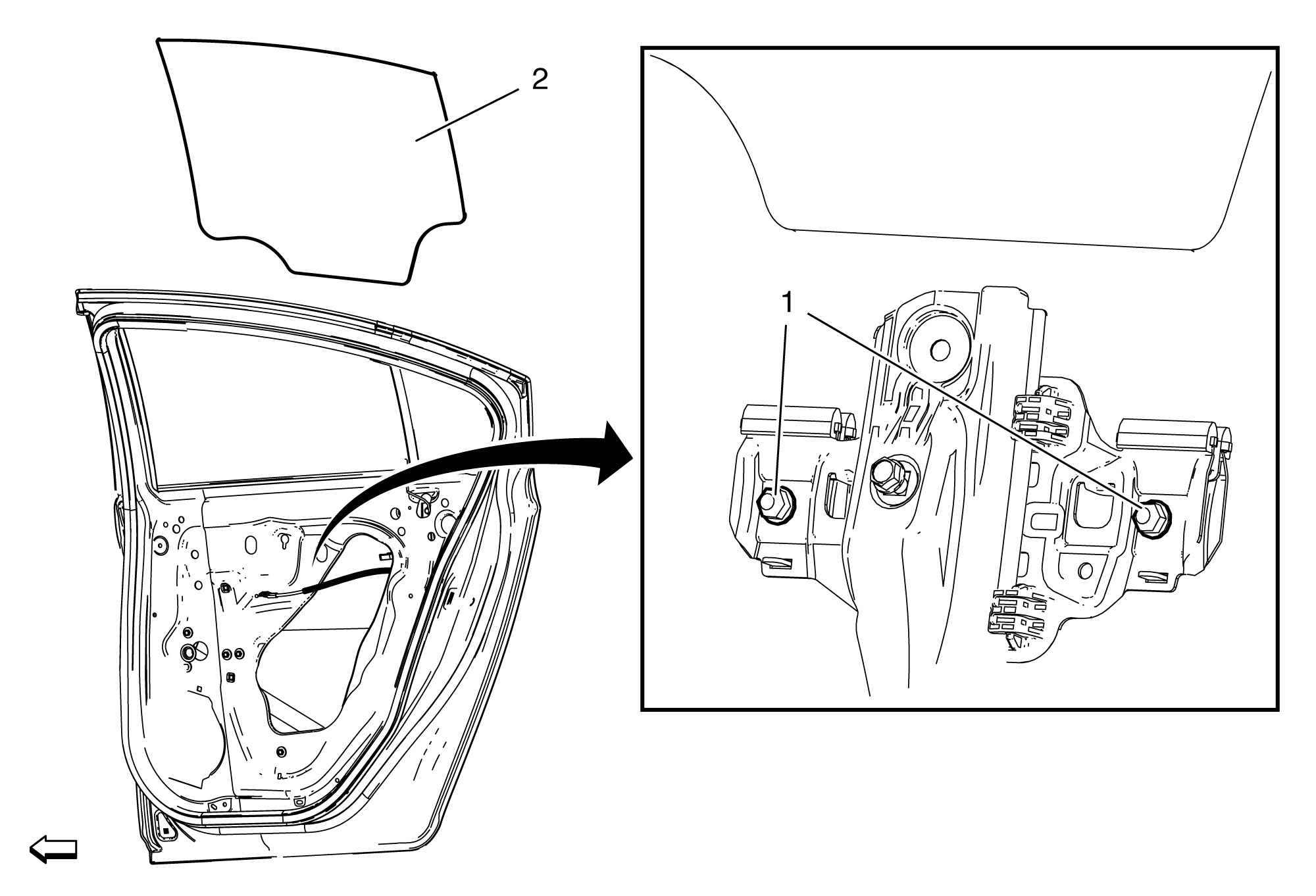

Fig 1: Rear Side Door Window And Regulator Sash Nuts
GM2027619Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning .
WARNING: Refer to Express Window Down Warning .

Preliminary Procedures

  1. Rear Side Door Trim Replacement .
  2. Rear Side Door Water Deflector Replacement .
1 Rear Side Door Window Regulator Sash Nut [2x]
CAUTION: Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)
2 Rear Side Door Window

Procedure

  1. Loosen the window regulator sash nuts.
  2. Connect the door trim panel wire connector.
  3. Start the vehicle to ensure maximum power to the window motor. This is required in order to fully seat the window for adjustment.
  4. Using the power window switch, raise the window to the full up position.
  5. Tighten the rear side door window regulator sash nuts.
  6. Inspect for proper window operation and a tight seal.
  7. Shut off the vehicle.
