Rear License Plate Lamp Wiring Harness Replacement

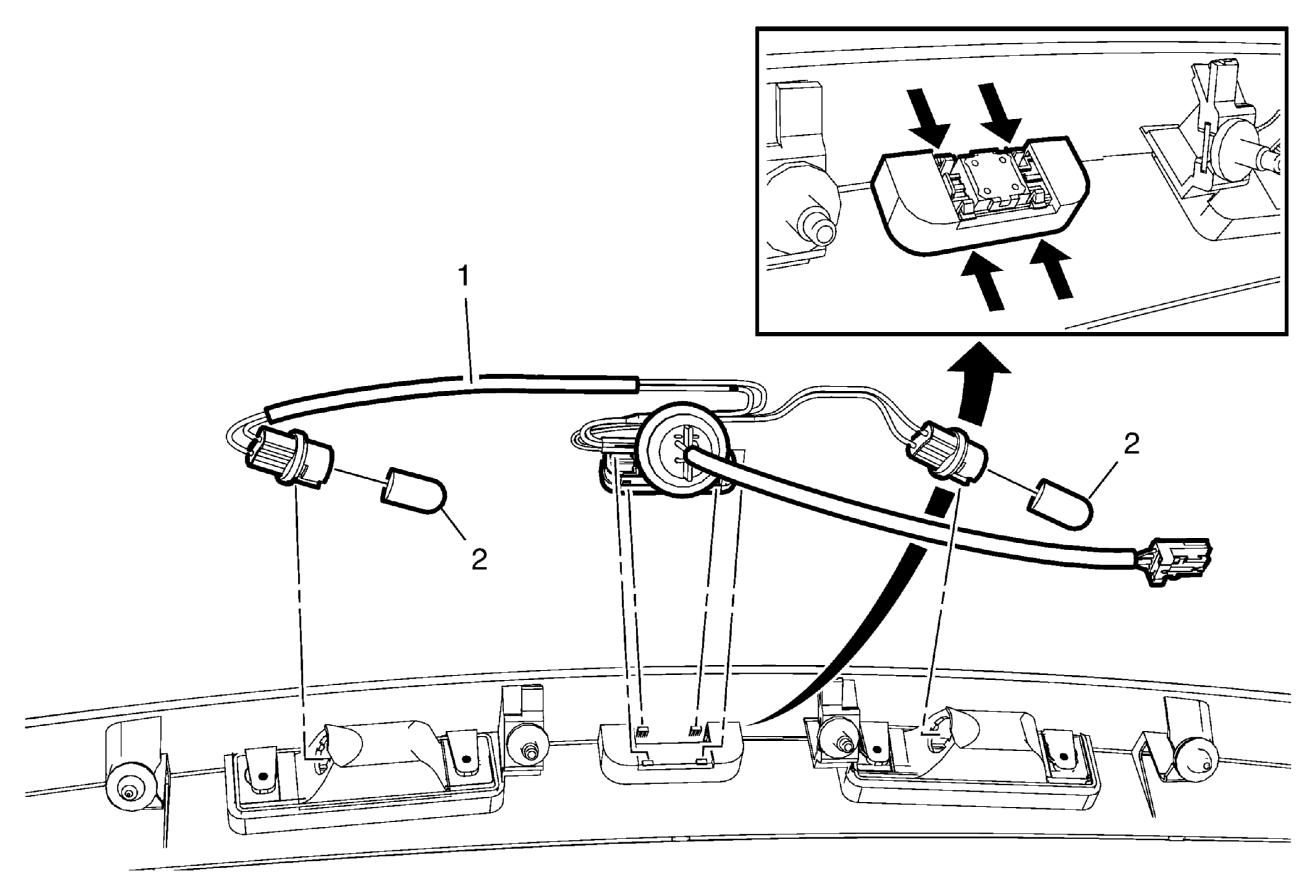

Fig 1: Rear License Plate Lamp Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid applique. Refer to Rear Compartment Lid Applique Replacement .
1	Rear License Plate Lamp Wiring Harness Procedure Squeeze retainers of release switch in order to remove switch from applique.
2	Rear License Plate Lamp Bulb Procedure Disconnect bulbs from wiring harness if needed. Transfer bulbs to new wiring harness if needed.

Callout

Component Name

Preliminary Procedures
Remove the rear compartment lid applique. Refer to Rear Compartment Lid Applique Replacement .

Rear License Plate Lamp Wiring Harness
Procedure
Squeeze retainers of release switch in order to remove switch from applique.

Rear License Plate Lamp Bulb

Procedure
