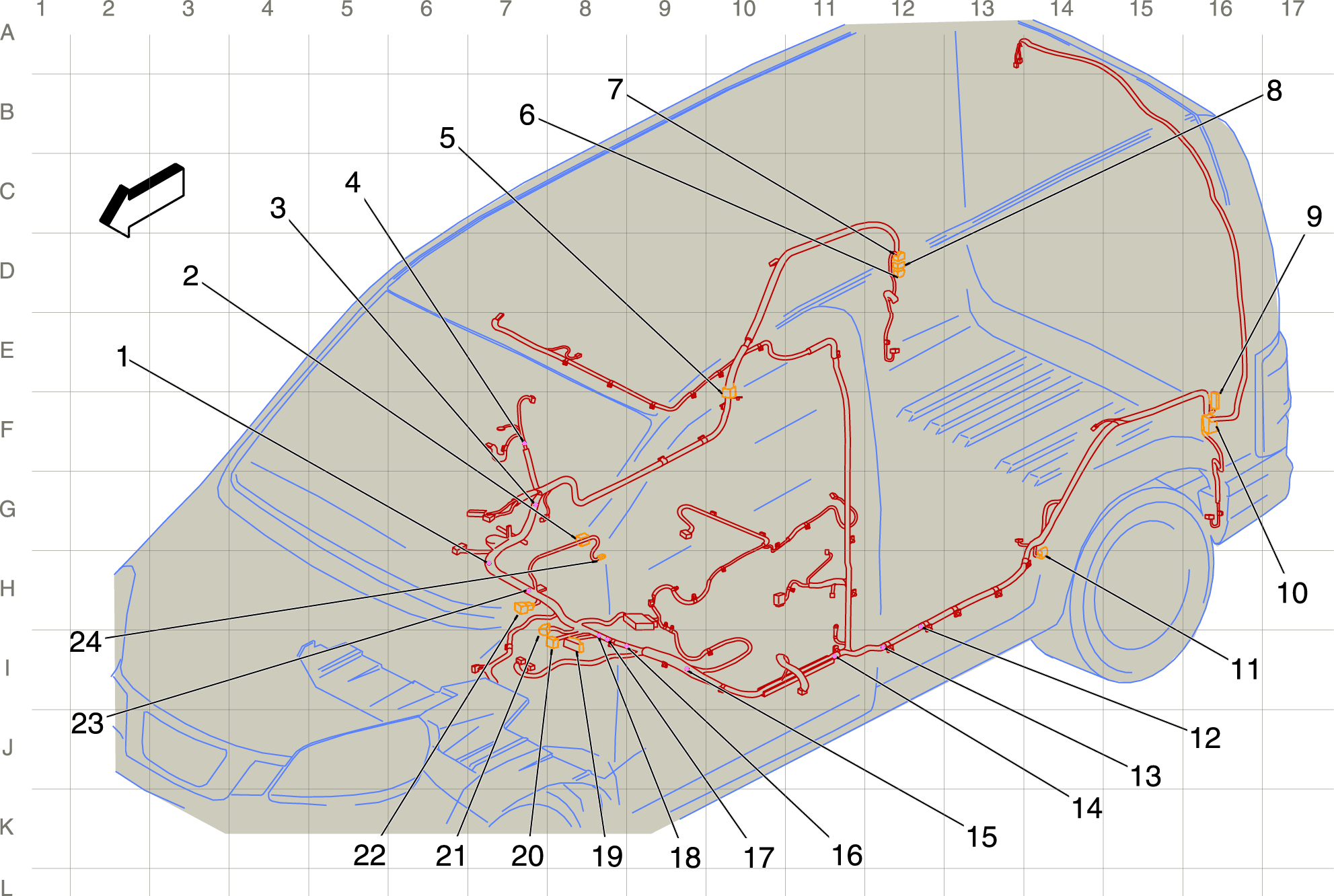

Body Harness Routing View
| Callout | Items |
|---|---|
| (1) | J303 |
| (2) | X300 Connector View |
| (3) | J311 |
| (4) | J314 |
| (5) | X302 Connector View |
| (6) | X420 Connector View |
| (7) | X403 Connector View |
| (8) | X402 Connector View |
| (9) | X304 Connector View |
| (10) | X410 Connector View |
| (11) | X303 Connector View |
| (12) | J305 |
| (13) | J306 |
| (14) | J313 |
| (15) | J307 |
| (16) | J301 |
| (17) | J308 |
| (18) | J304 |
| (19) | X306 Connector View |
| (20) | X308 Connector View |
| (21) | X305 Connector View |
| (22) | X307 Connector View |
| (23) | J312 |
| (24) | X301 Connector View |
