Rear Cargo Door Lock
|
|
|

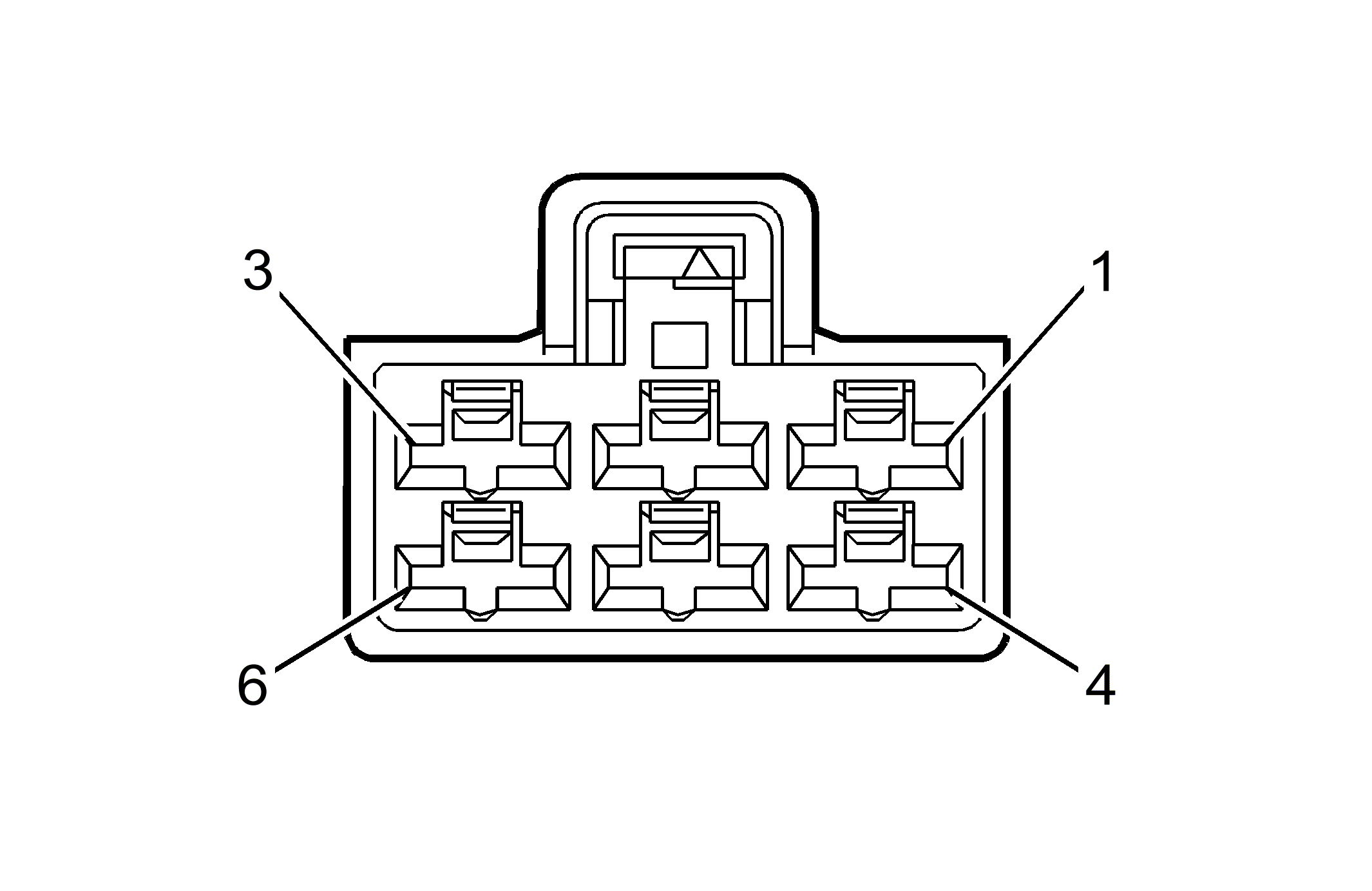

Connector Part Information
- Harness Type: Back Door
- OEM Connector: M06FW-LC
- Service Connector: Service by Harness
- Description: 6-Way F 250 Series (NA)
|

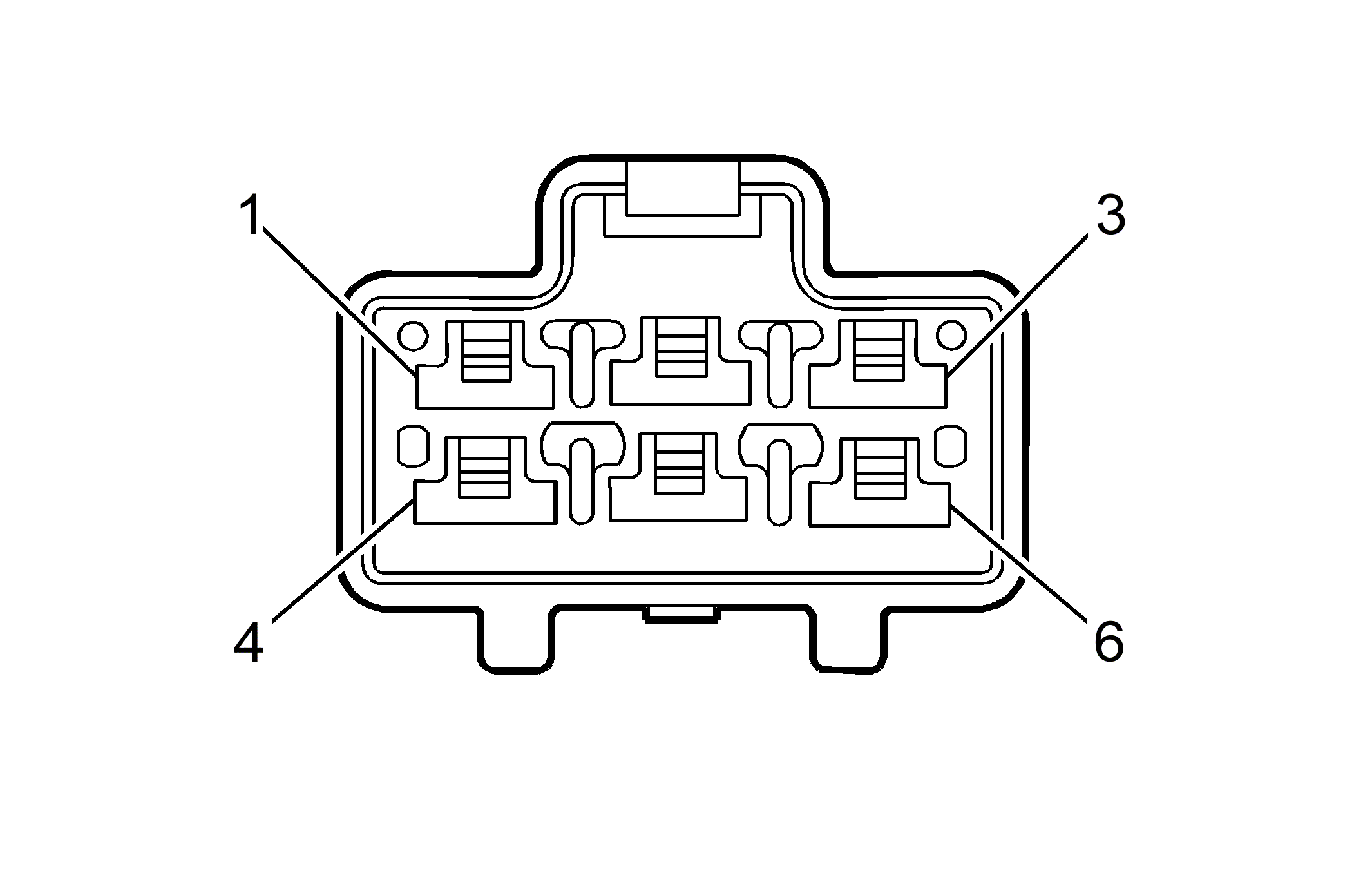

Connector Part Information
- Harness Type: Body
- OEM Connector: M06MW-LC
- Service Connector: Service by Harness
- Description: 6-Way M 250 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness |
Not Available |
Not Available |
Not Available |
| II |
Not Available |
Not Available |
Not Available |
Service by Harness |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
- |
D-BU |
PD26 |
I |
- |
Rear Cargo Door Lock Motor Lock Control |
2 |
- |
D-BU/WH |
PD26 |
II |
- |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
- |
BK |
E007 |
I |
- |
Ground |
4 |
- |
BK |
E007 |
II |
- |
| 5 |
- |
YE |
PD27 |
I |
- |
Rear Cargo Door Lock Motor Unlock Control |
5 |
- |
YE |
PD27 |
II |
- |
| 6 |
- |
RD/WH |
NA01 |
I |
- |
Rear Defogger Relay Supply Voltage |
6 |
- |
RD/WH |
NA01 |
II |
- |
