Knock Sensor Replacement (Bank 2)

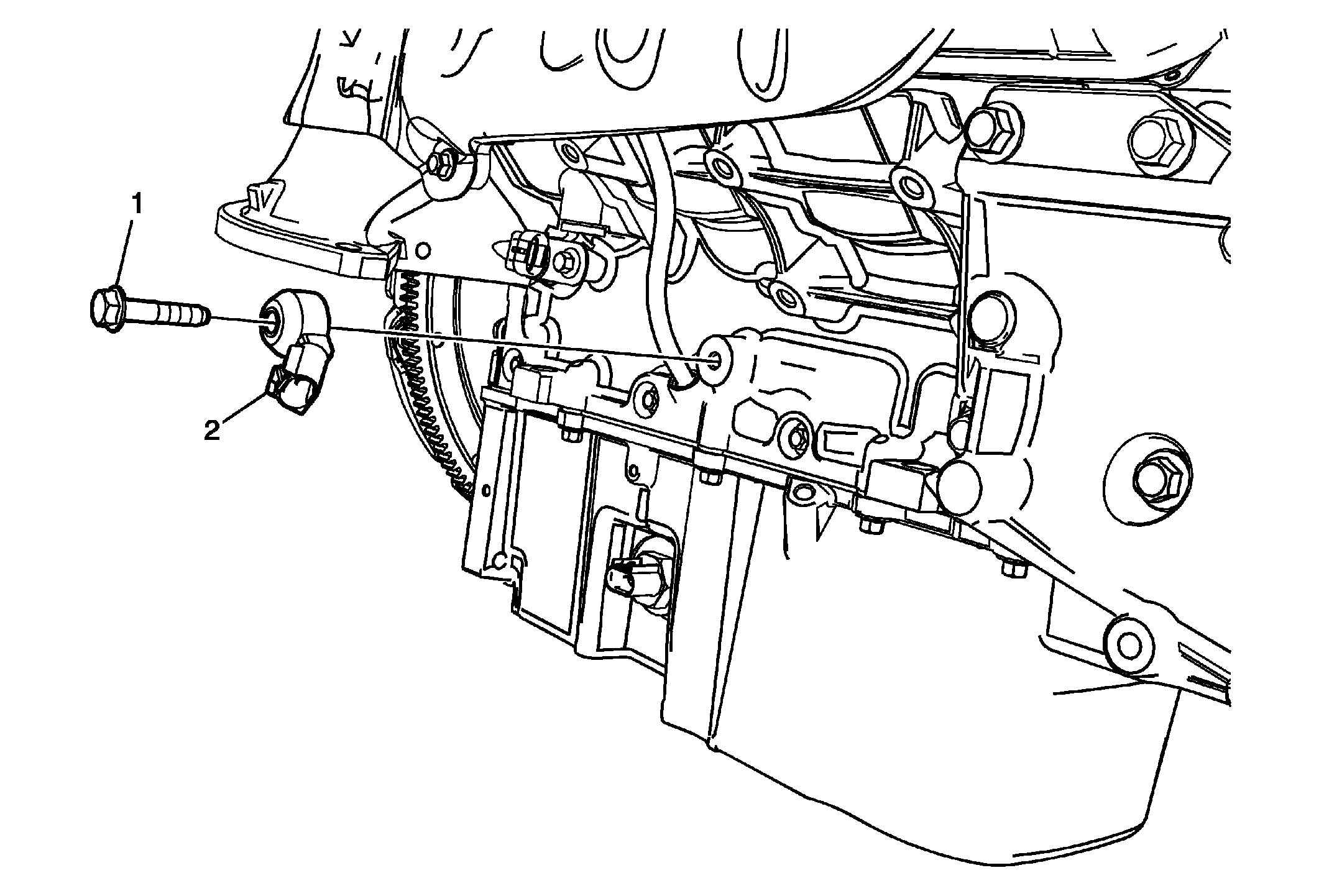

Fig 1: Knock Sensor (Bank 2)
GM2197665Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the starter. Refer to Starter Replacement (L99, LS3, LSA, LS7) .
1 Knock Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Knock Sensor
Procedure
Disconnect the electrical connector.
