Starter Replacement (L99, LS3, LSA, LS7)

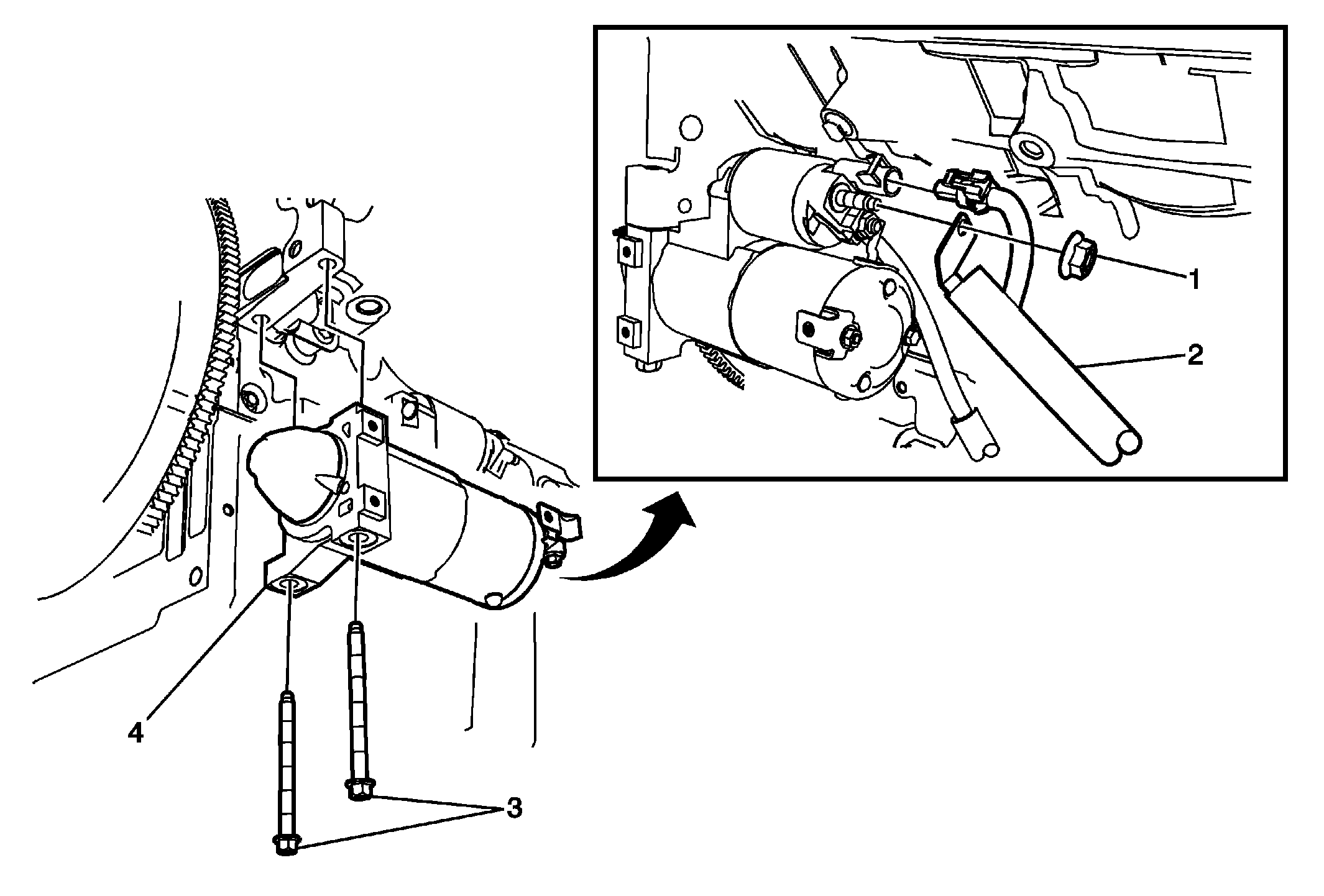

Fig 1: Starter, Battery Positive Cable, Nut And Bolts (L99, LS3, LSA, LS7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the starter heat shield. Refer to Starter Shield Replacement (L99, LS3) Starter Shield Replacement (LSA, LS7) .
1	Battery Positive Cable Nut CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb in)
2	Battery Positive Cable
3	Starter Mounting Bolt (Qty: 2) Tighten 58 N.m (43 lb ft)
4	Starter Procedure Disconnect the engine harness starter connector.
