Air Cleaner Assembly Replacement (LS7)

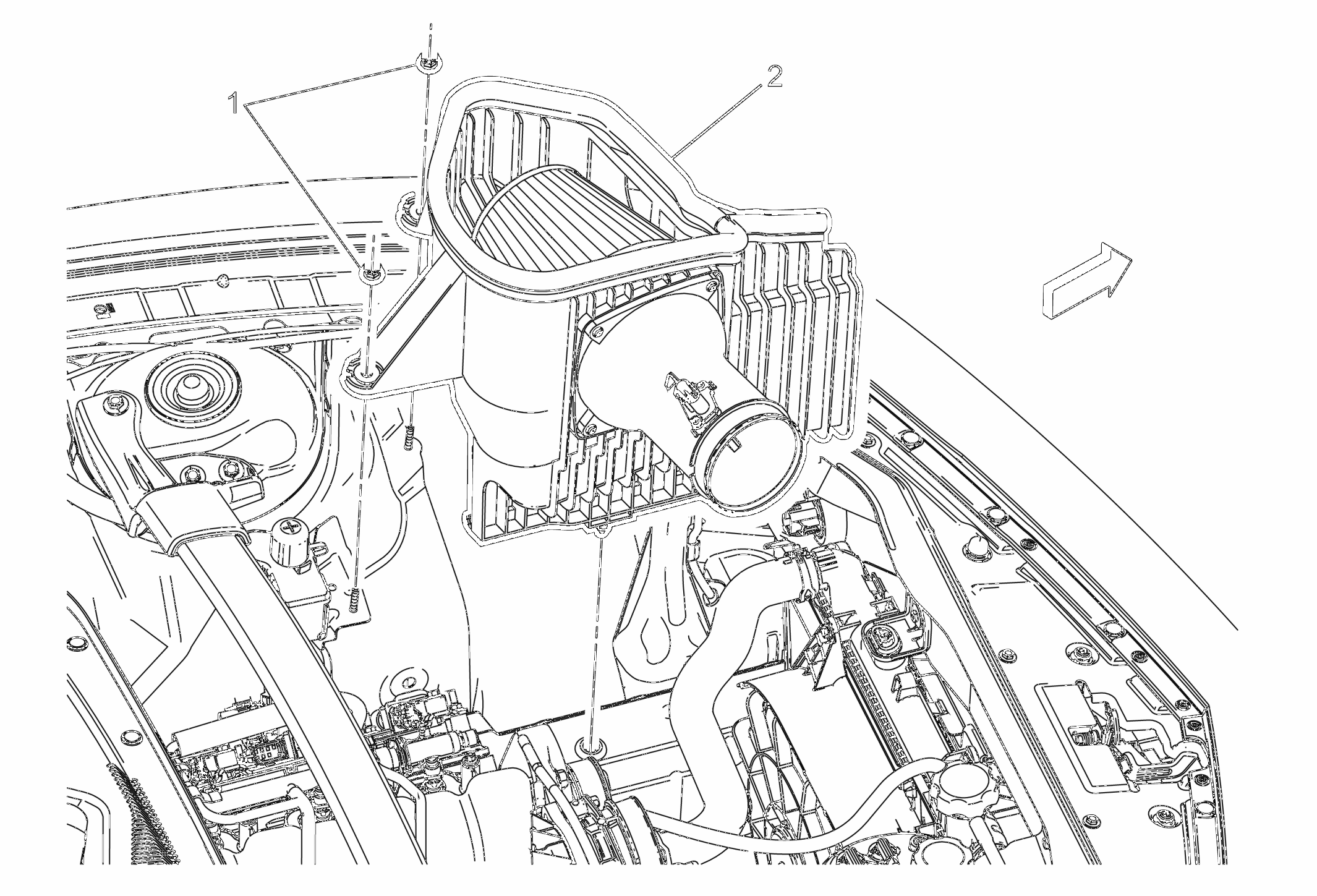

Fig 1: Air Cleaner Assembly (LS7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LS7) . Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LS7) .
1	Air Cleaner Assembly Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Air Cleaner Assembly Procedure Pull up on the assembly to release lower retainers.

Callout

Component Name

Preliminary Procedure

Air Cleaner Assembly Fastener (Qty: 2)

CAUTION:

Tighten
8 N.m (71 lb in)

Air Cleaner Assembly
Procedure
Pull up on the assembly to release lower retainers.
