Air Cleaner Resonator and Outlet Duct Replacement (LS7)

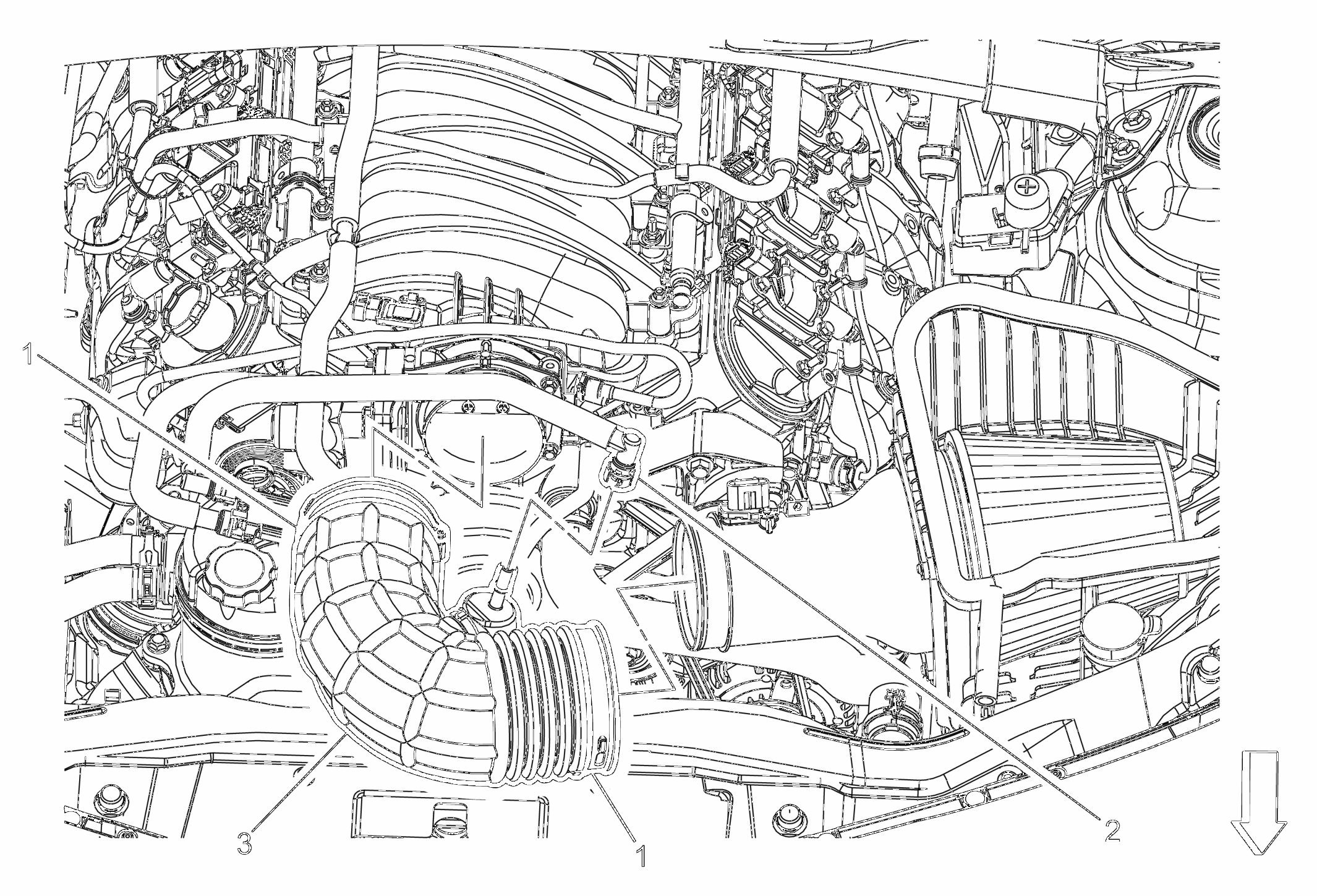

Fig 1: Air Cleaner Resonator and Outlet Duct (LS7)
GM3654722Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Resonator and Outlet Duct Hose Clamps (Qty :2)
CAUTION:

Refer to Fastener Caution .
2 Positive Crankcase Ventilation Tube Quick Disconnect Fitting
Procedure
Disconnect the positive crankcase ventilation tube from the resonator. Refer to Plastic Collar Quick Connect Fitting Service .
3 Air Cleaner Resonator and Outlet Duct
