Hood Primary Latch Release Cable Replacement

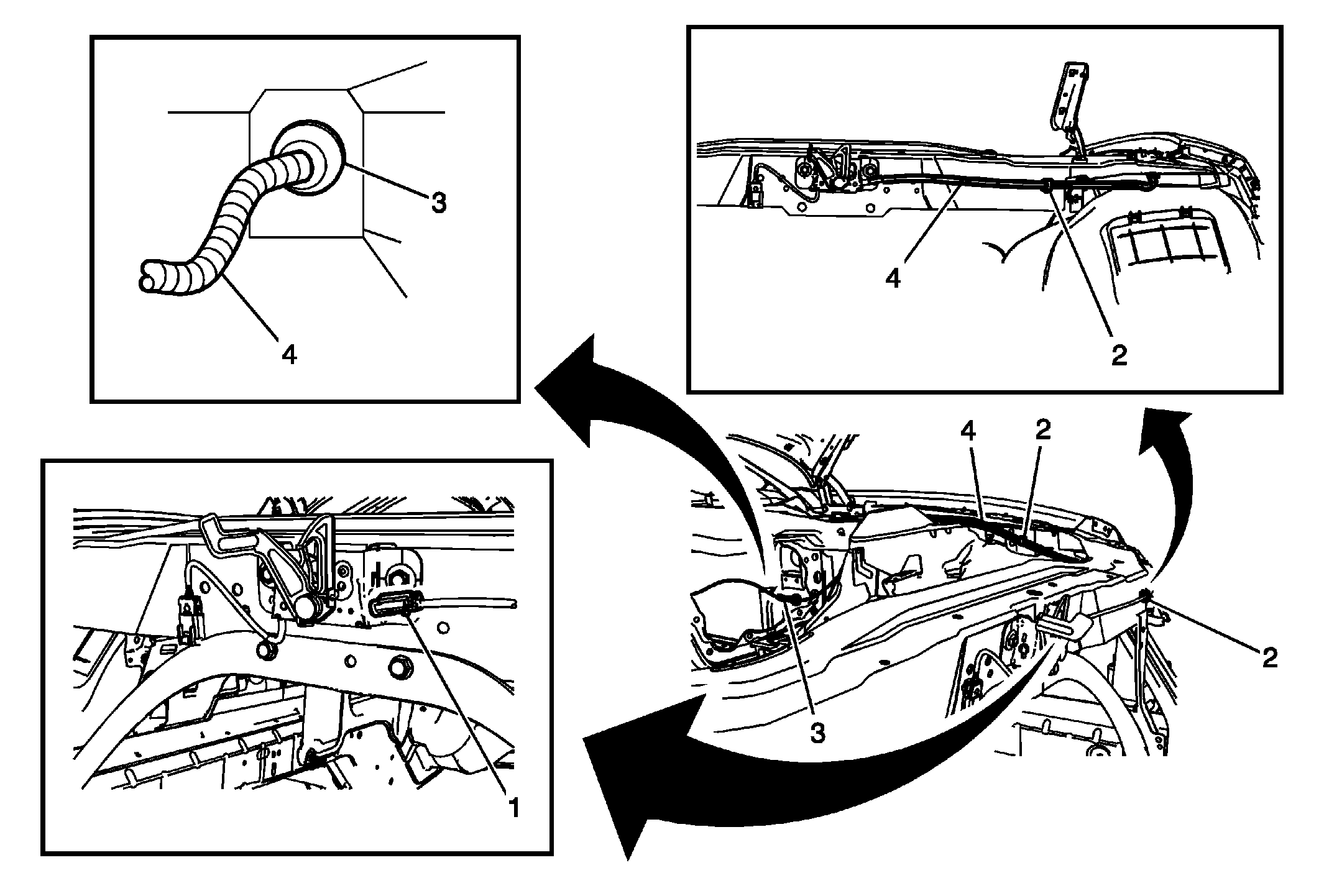

Fig 1: Hood Primary Latch Release Cable & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement .
1	Hood Primary Latch Cable Procedure  Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer Procedure  Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure  Disconnect the hood primary latch release cable handle from the hood latch cable. Refer to Hood Primary Latch Release Cable Handle Replacement .
