Hood Primary Latch Release Cable Handle Replacement

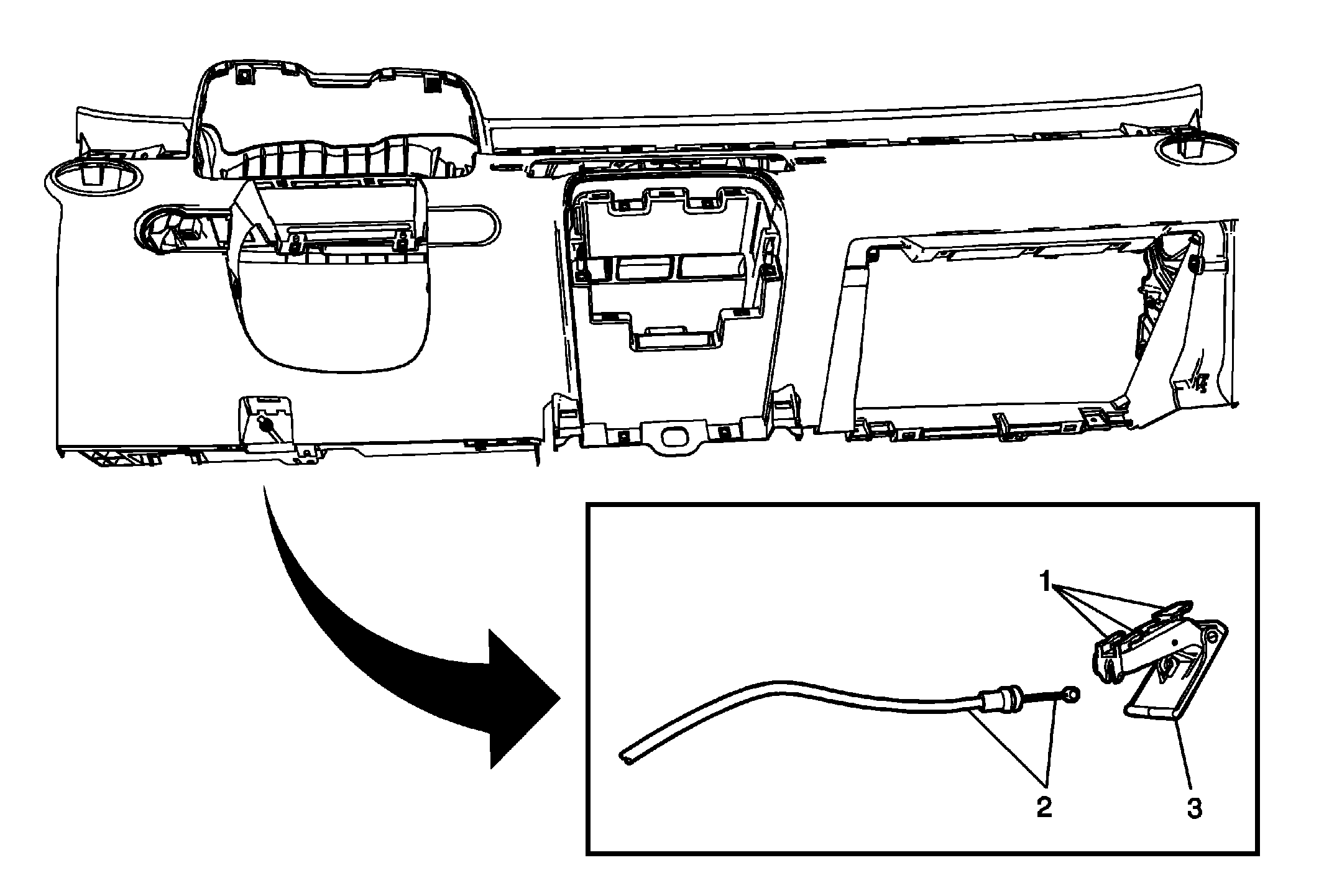

Fig 1: Hood Primary Latch Release Cable, Handle And Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Primary Latch Release Cable Handle Retainer Procedure  Press the release cable handle inward/downward to release the retainers from the instrument panel.
2	Hood Primary Latch Release Cable Procedure  Disconnect the hood release cable from the hood release handle.
3	Hood Primary Latch Release Cable Handle
